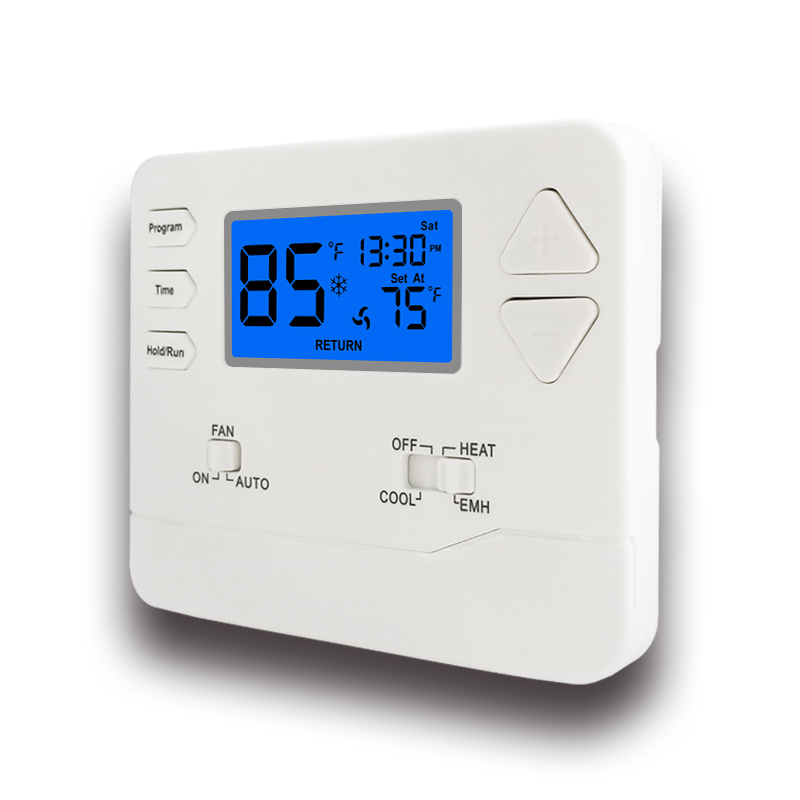

Heat Pump Multi Stage Programmable Thermostat

Model:STN625
Features:

2 Heat / 1 Cool

Heat Pump

7 Day, 5/1/1 programmable or Non programmable

Batteries or 24V power

Large, easy to read clear LCD display

Various backlight color optional

Easy menu driven programming

Intuitive wake, leave, return, sleep programming icons

Electric or Gas configurable

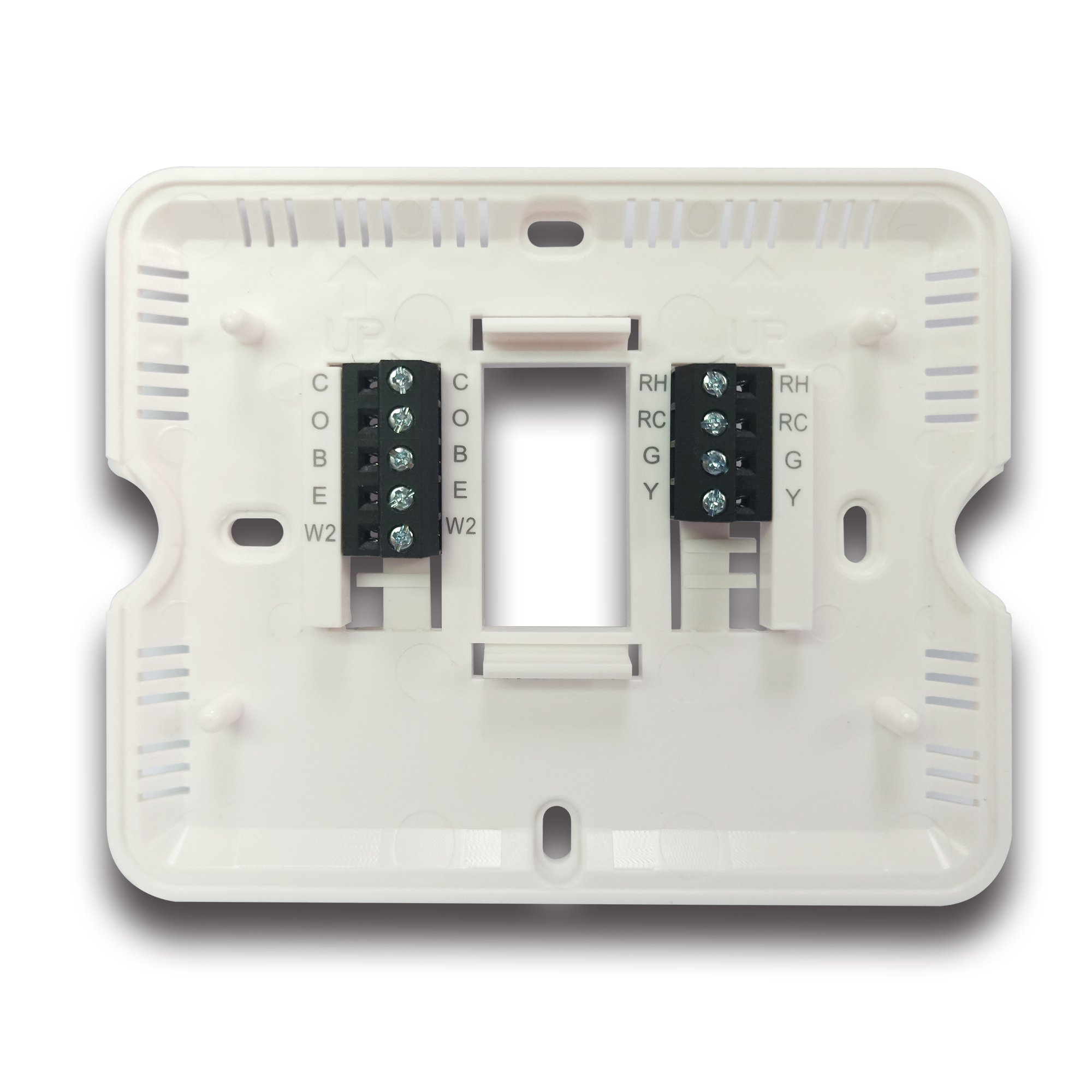

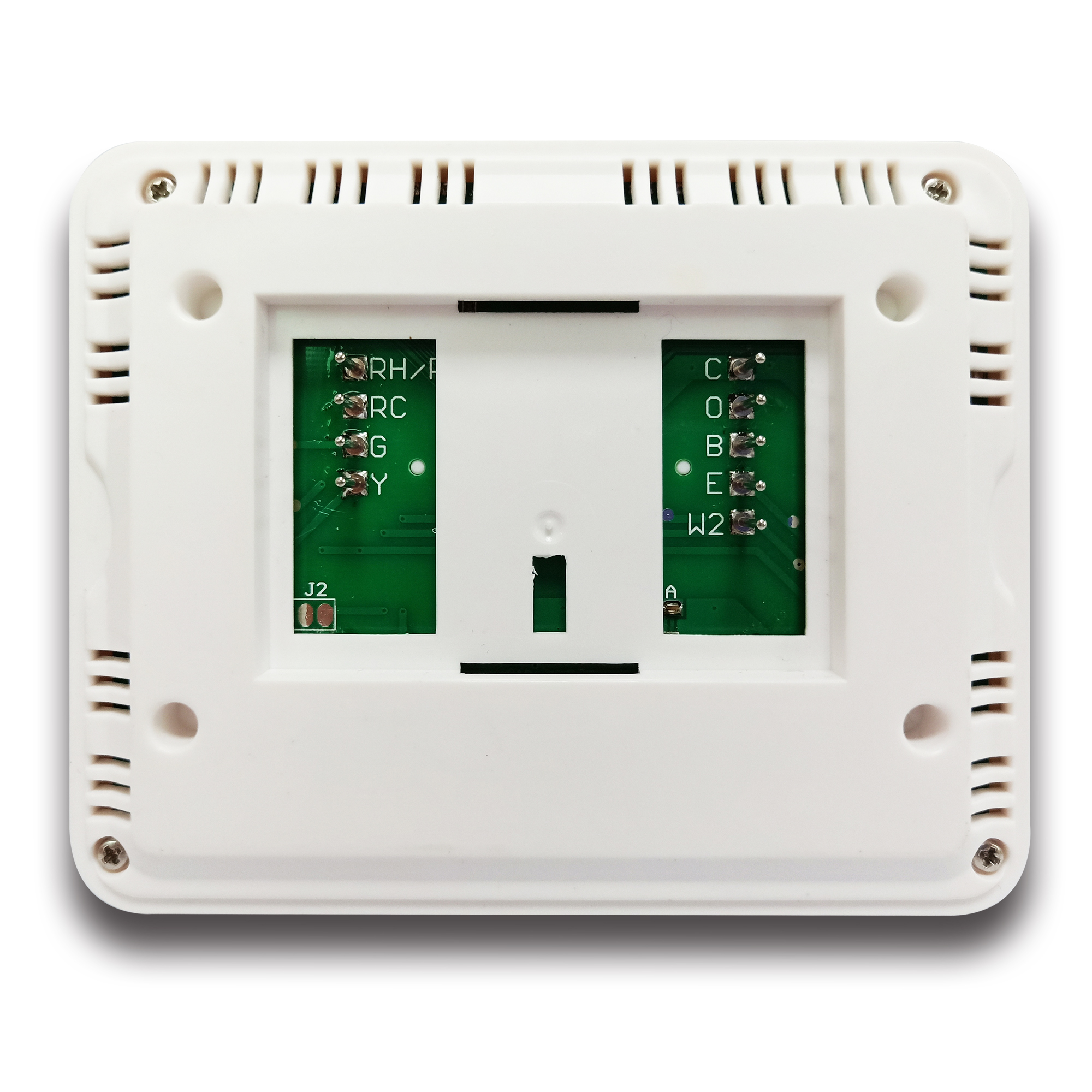

Separate B & O terminals

Separate heating and cooling swing (cycle rate)adjustments including 2nd stage adjustments

Filter change indicator (selectable on or off)

Room temperature calibration adjustable

5 minute compressor delay protection (selectable on or off)

Contemporary design

Factory pre-set programme


Request A Quote
Products Description

Model No.: STN625

Programmability:7 Day, 5/1/1 Programmable or Non-programmable

Temperature Range (˚F): 32˚F-99˚F (1°C-40°C)

Control Temp.Range (˚F): 44˚F-90˚F (7°C-32°C)

Temp.Meas.Accuracy: ±1°C (at 20°C)

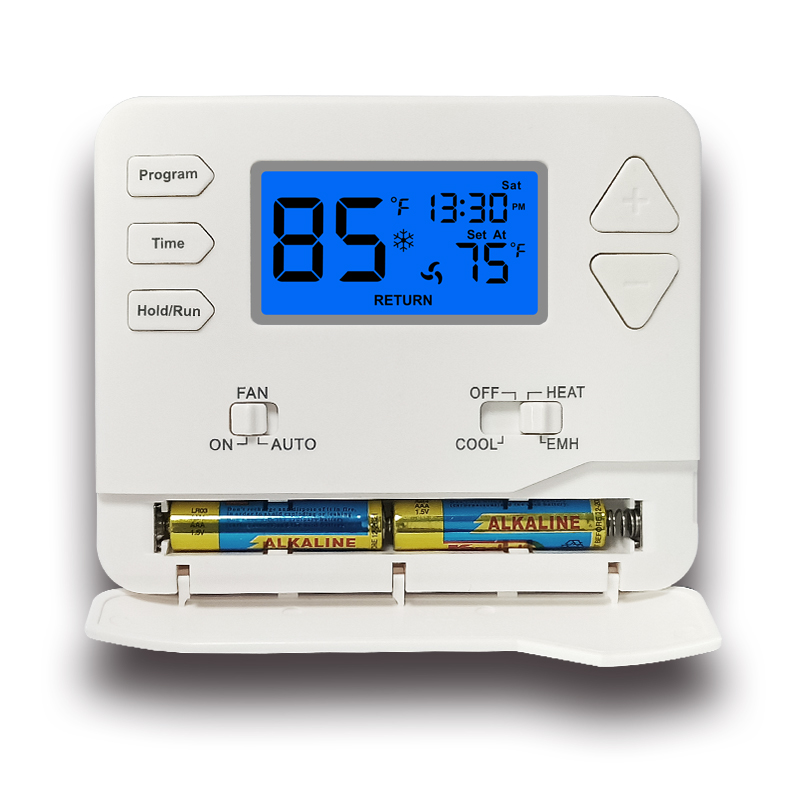

Power Source:  DC 2 x AAA 1.5V Alkaline batteries

24VAC (18~30VAC), 50/60 Hz for hardwire (common wire)

Dimensions: 120 x98 x28 mm
