Model No.: STN7105
Programmability: 7 Day,5/1/1 or Non-Programmable
Temperature Range (˚F): 32˚F-99˚F (1°C-40°C)
Control Temp.Range (˚F): 44˚F-90˚F (7°C-32°C)
Temp.Meas.Accuracy: ±1°C (at 20°C)
Power Source: DC 2 x AAA 1.5V Alkaline batteries
24VAC (18~30VAC), 50/60 Hz for hardwire (common wire)
1 Heat/1 cool
7 Day,5/1/1 or Non-Programmable
Auto Changeover
Easy menu driven programming
Intuitive wake, leave, return, sleep programming icons
White/Blue/Green backlight
Electric or Gas configurable
Room temperature calibration adjustment
Separate heating and cooling swing (cycle rate) adjustments
Keypad lockout
Heating and cooling setpoint limits
5 minute compressor delay protection (selectable on or off)
Filter change indicator (selectable on or off)

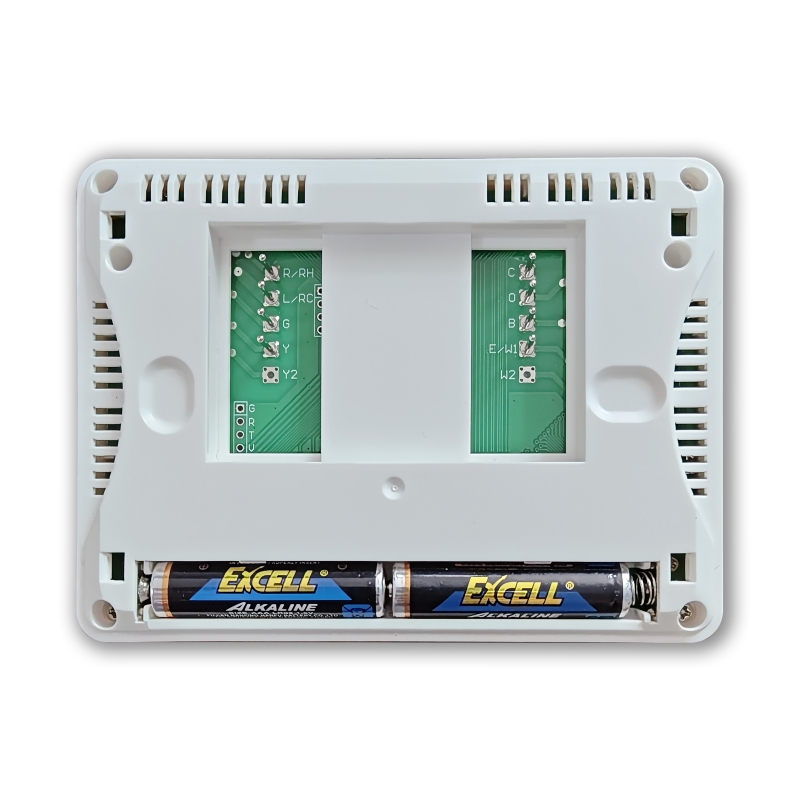

Easy wire color coded terminal blocks

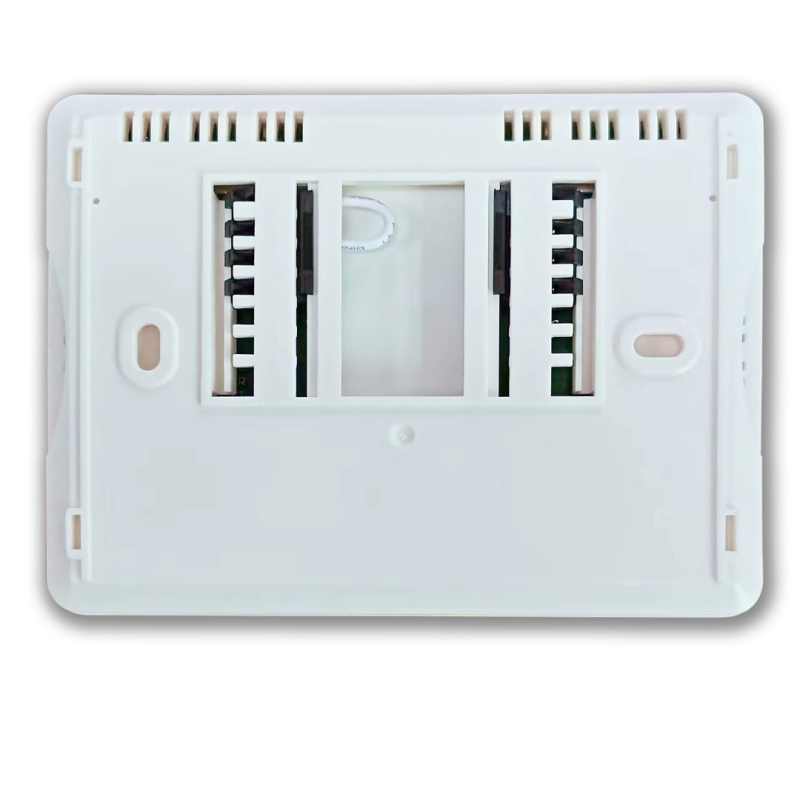

Universal sub-base
Mounts on wall or junction box
Battery or 24V power
