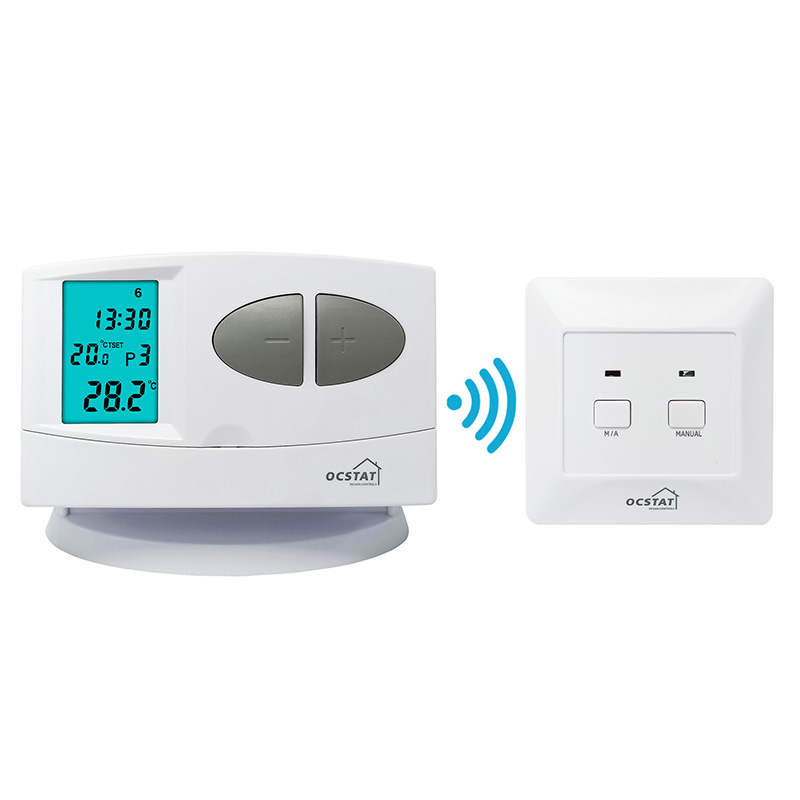

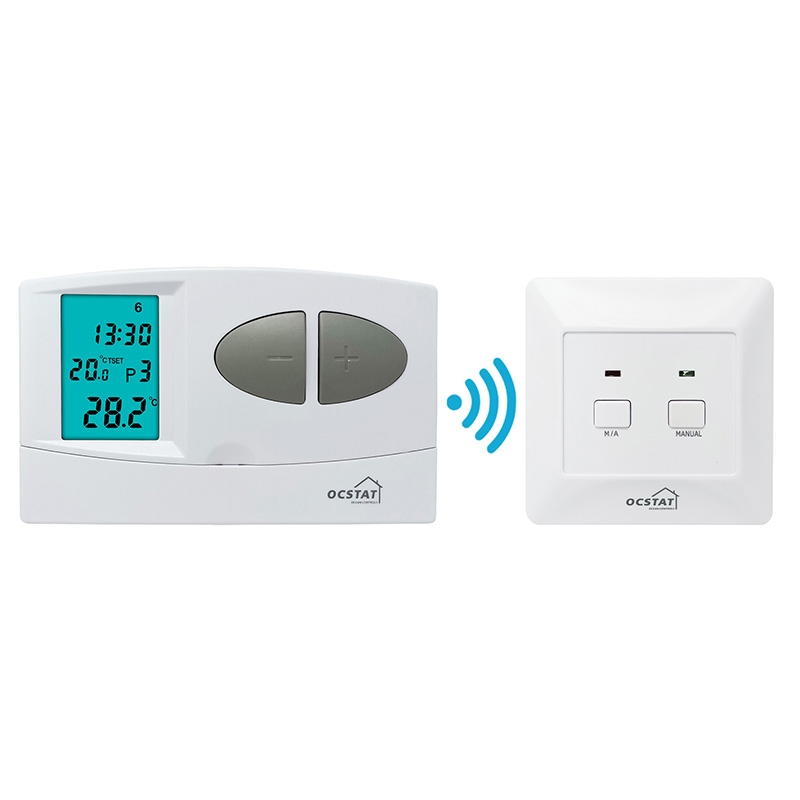

Programmable Heating RF Thermostat

Model:C7RF
Features:

Large push button
Clear LCD display
Green backlight color
Room Temperature Calibration adjustment (in -3~+3°C)
Switching sensitivity adjustable
Manual override mode and Holiday mode
Keypad Lockout
Factory pre-set programme
Easy installation

Request A Quote
Products Description

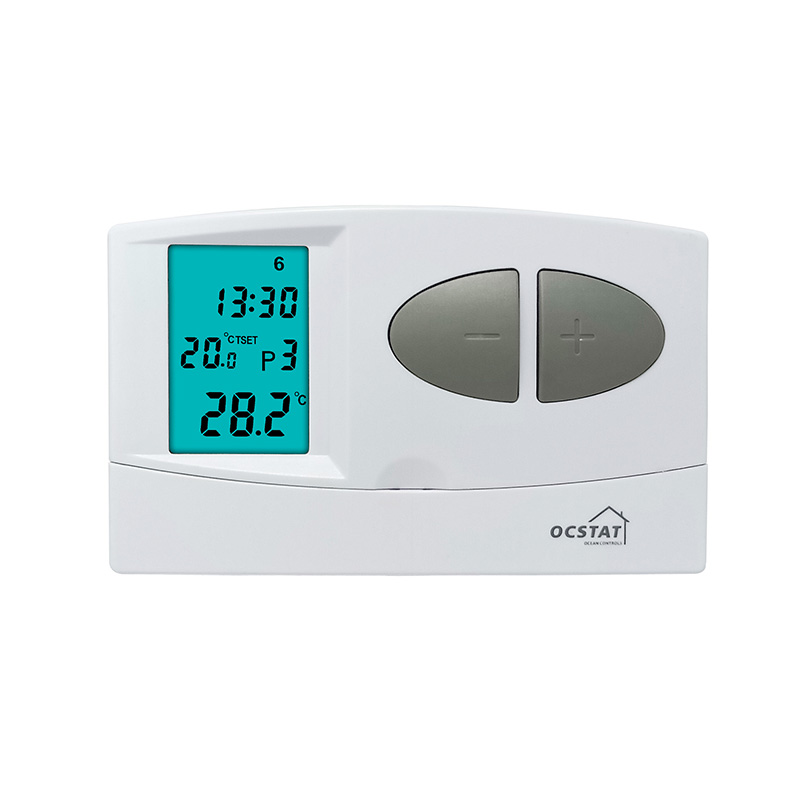

Transmitter (thermostat):

Model No.: C7RF
Switchable Voltage: 24 V AC / DC,...250 V AC; 50 Hz
Switchable Current: 6 A (2 A inductive load)
Programmability: 7 Day, 5/2 Day and 24 hour Programmable
Temperature Range (°C): 5°C-35°C in 0.5°C
Control Temp.Range (°C): 10°C-30°C in 0.5°C
Temp.Meas.Accuracy: ±1°C (at 20°C)
Power Source:  DC 2 x AA 1.5V Alkaline batteries
Dimensions: 130 x80 x35 mm

Receiver:

Power Supply: 230VAC, 50HZ

Operating Frequency:868.35MHZ

Transmission Distance: approx. 100m in open terrain

Consumption: 6W

Maximum Load: 6(2)A, 230V
