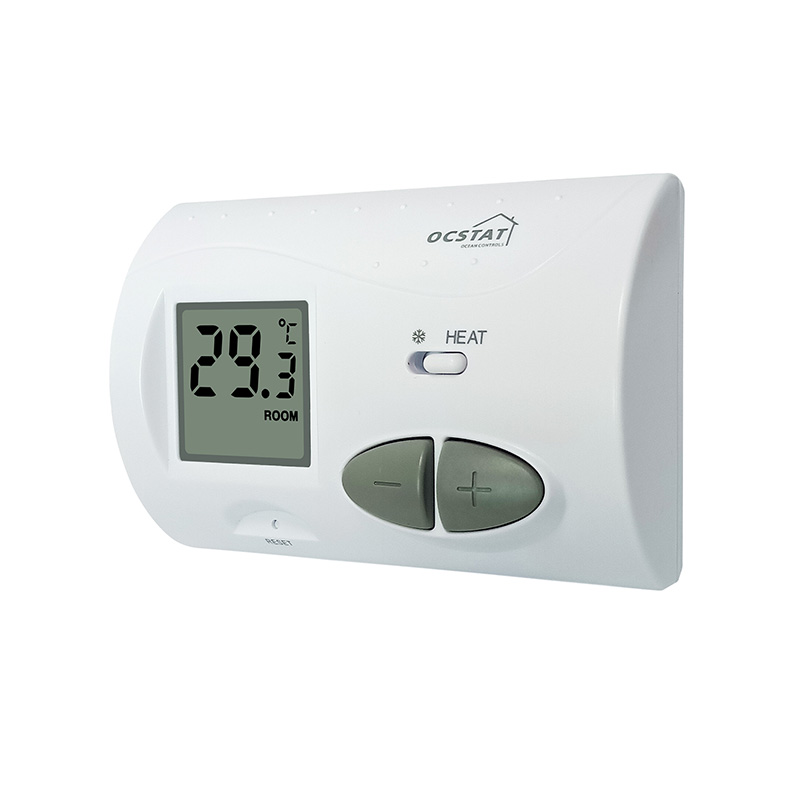

Wired Non-Programmable Thermostat

Model:C3
Features:

Large push button
HEAT (Heating) / OFF (Frost Protection)
Switching sensitivity adjustable
Battery low indicator
Classical design
Simple Operation
Easy installation


Request A Quote
Products Description

Model No.: C3
Switchable Voltage: 24 V AC / DC,...250 V AC; 50 Hz
Switchable Current: 6 A (2 A inductive load)
Programmability: Non-Programmable
Temperature Range (°C): 5°C-35°C in 0.5°C
Control Temp.Range (°C): 10°C-30°C in 0.5°C
Temp.Meas.Accuracy: ±1°C (at 20°C)
Defrosting Temperature: +7°C
Power Source:  DC 2 x AA 1.5V Alkaline batteries
Dimensions: 110 x75 x45 mm
