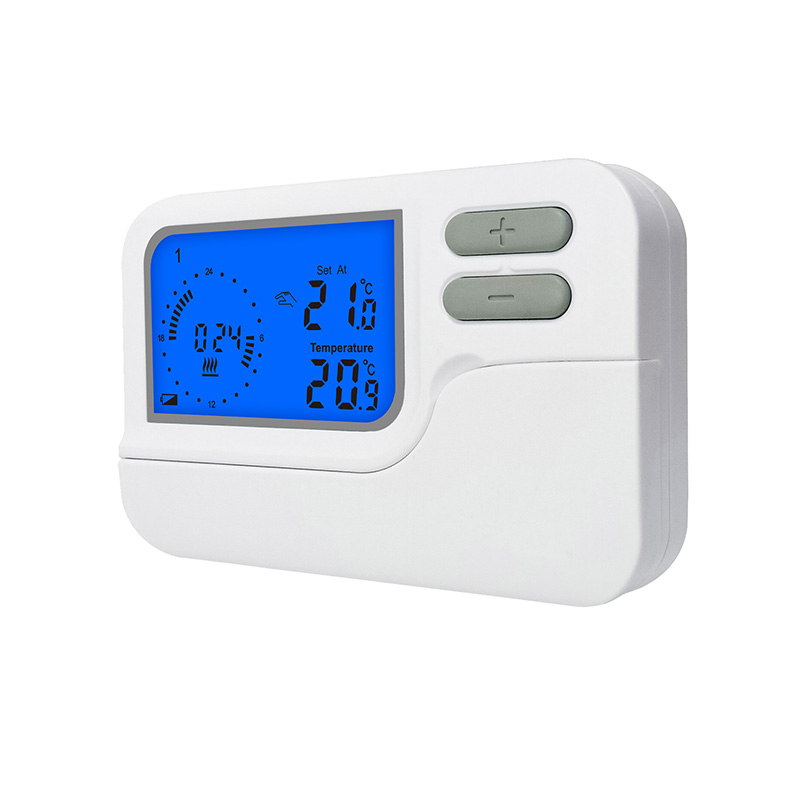

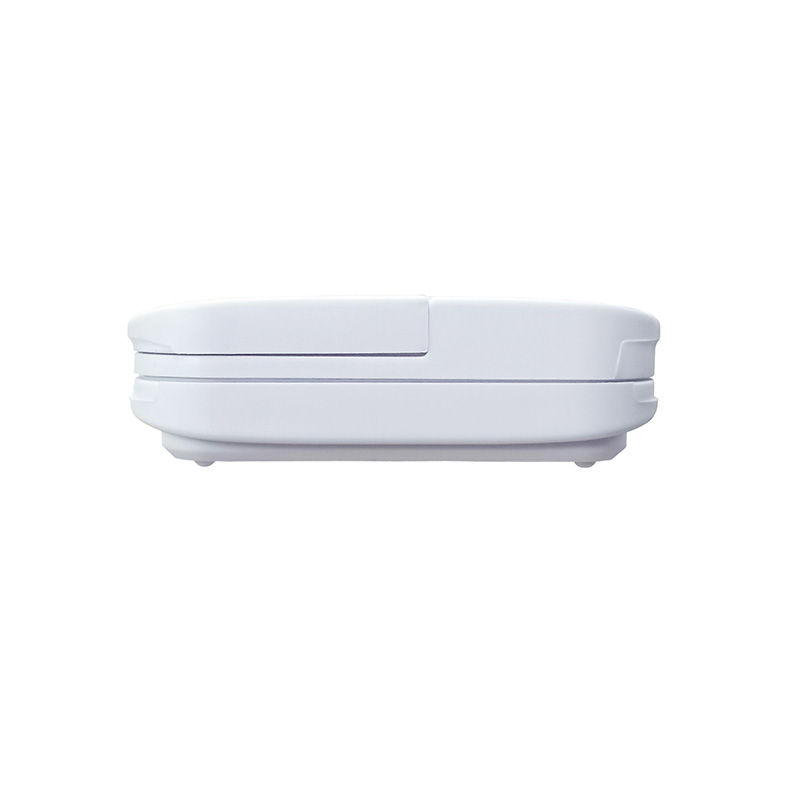

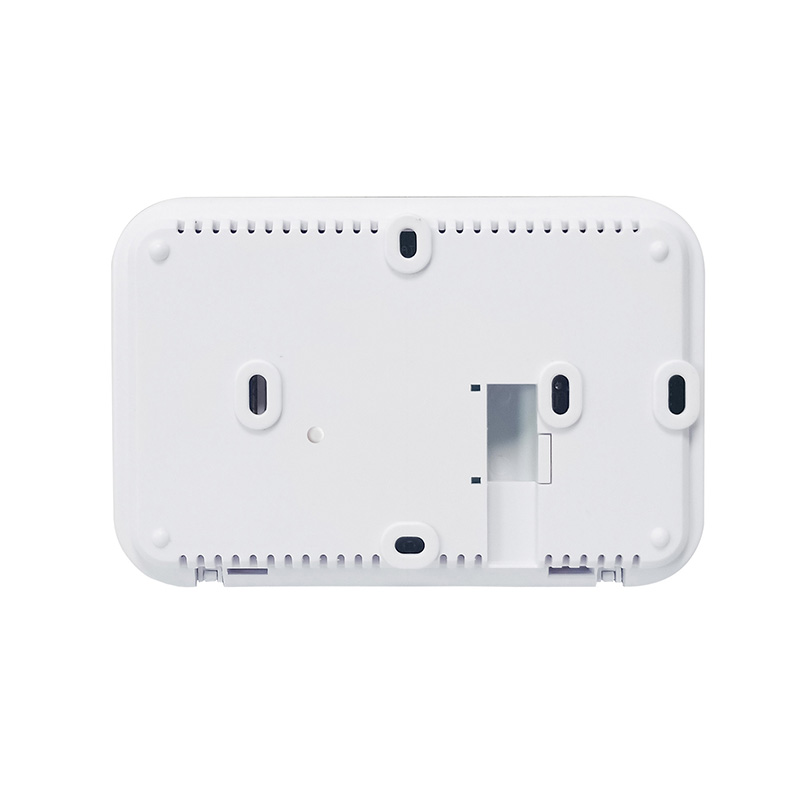

Wireless 7 Day Boiler Thermostat

Model:2303RF
Features:

Large, easy to ready clear LCD display

Various backlight color optional

Room Temperature Calibration adjustment (in -3~+3°C)

Switching sensitivity adjustable

Manual override mode

Keypad Lockout

Factory pre-set programme

Easy installation

Request A Quote
Products Description

Transmitter (thermostat):

Model No.: S2303RF

Switchable Voltage: 24 V AC / DC,...250 V AC; 50 Hz

Switchable Current: 6 A (2 A inductive load)

Programmability: 7 Day Programmable, 48 Time & 2 Temp per day

Temperature Range (°C): 0°C-40°C in 0.5°C

Control Temp.Range (°C): 5°C-35°C in 0.5°C

Temp.Meas.Accuracy: ±1°C (at 20°C)

Power Source:  DC 2 x AAA 1.5V Alkaline batteries

Dimensions: 119 x80 x26 mm

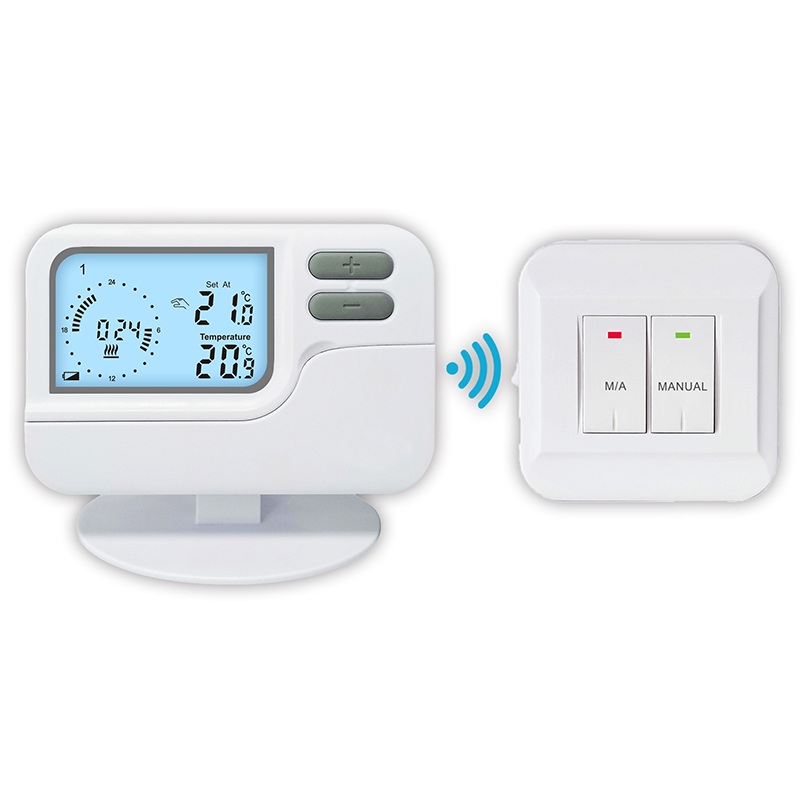

Receiver:

Power Supply: 230VAC, 50HZ

Operating Frequency:868.35MHZ

Transmission Distance: approx. 200m in open terrain

Consumption: 6W

Maximum Load: 6(2)A, 230V

Dimensions: 86 x 86 x 26 mm
