Home / Products / HVAC Thermostat / 2 Heat 1 Cool Heat Pump Thermostat

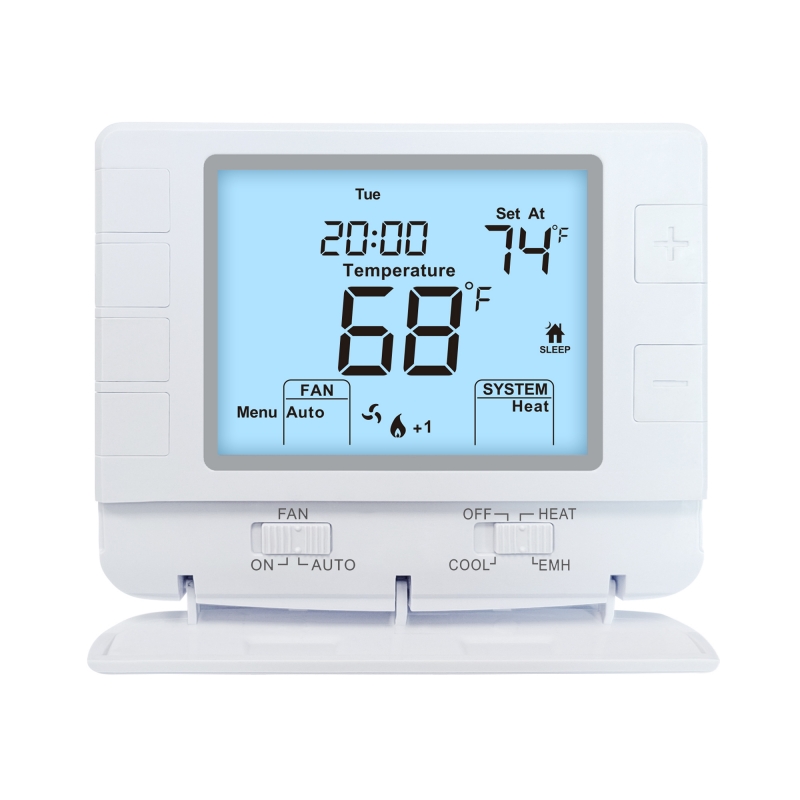

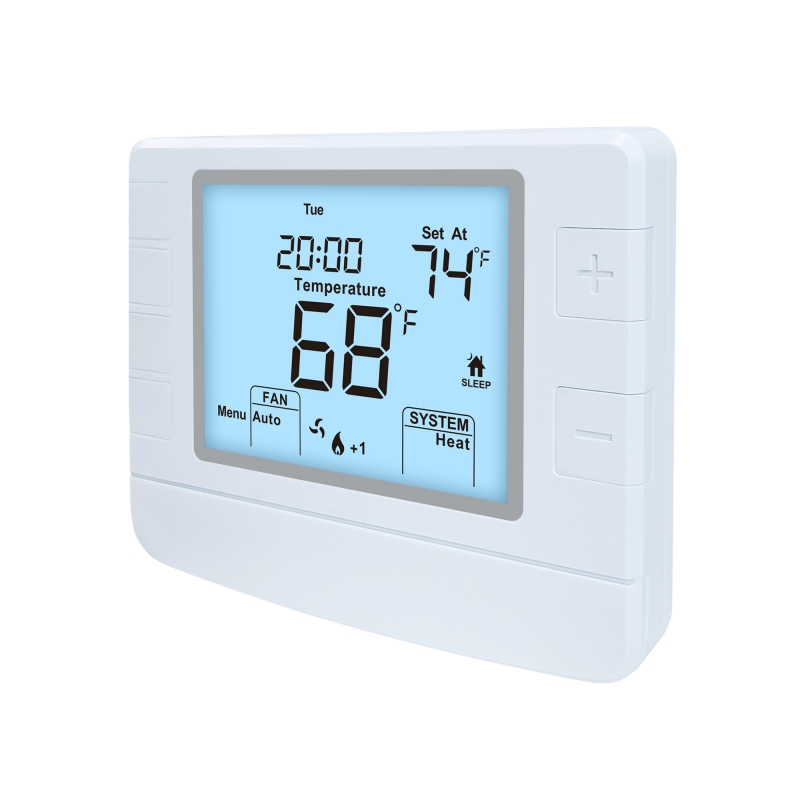

2 Heat 1 Cool Heat Pump Thermostat

Model:STN1320
Features:

Heat Pump

2 Heat,1 Cool

Non programmable

White/Blue/Green backlight

Electric or Gas configurable

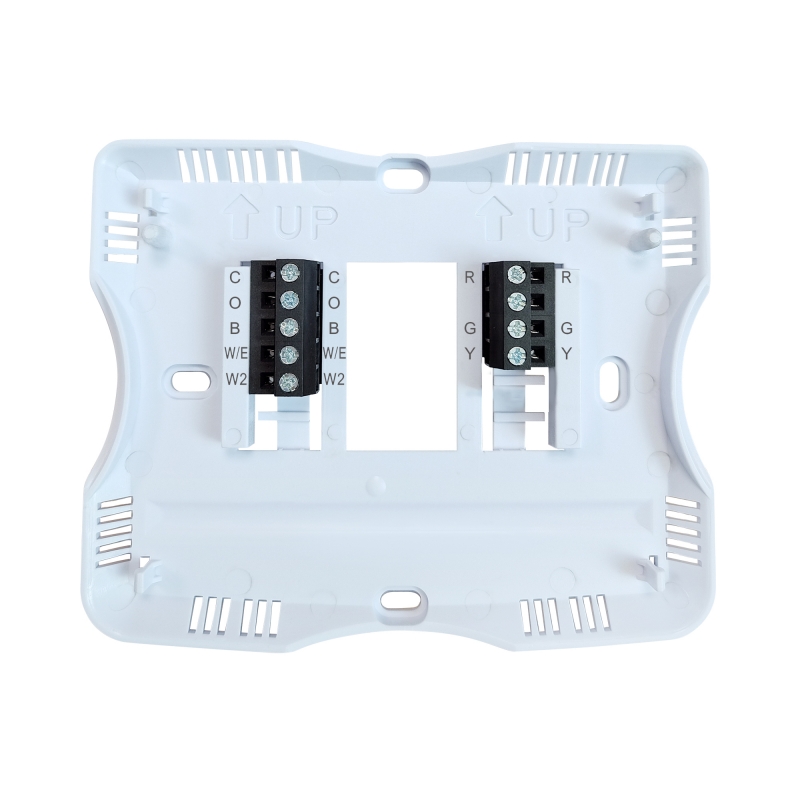

Separate B & O terminals

Separate heating and cooling swing(cycle rate) adjustments

including 2nd stage adjustments

Filter change indicator (selectable on or off)

Heating and cooling set point limits

Room temperature calibration adjustment

5minute compressor delay protection (selectable on or off)

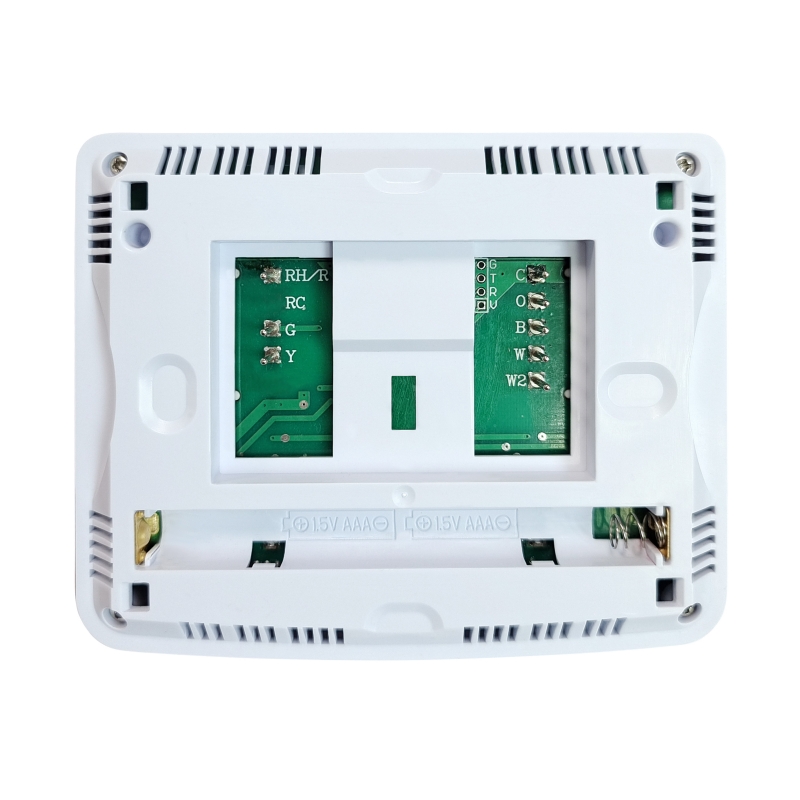

Battery or 24V power

Request A Quote
Products Description

Model No.: STN1320

Programmability: Non Programmable

Temperature Range (˚F): 32˚F-99˚F (1°C-40°C)

Control Temp.Range (˚F): 44˚F-90˚F (7°C-32°C)

Temp.Meas.Accuracy: ±1°C (at 20°C)

Power Source:  DC 2 x AAA 1.5V Alkaline batteries

24VAC (18~30VAC), 50/60 Hz for hardwire (common wire)
