Battery Operated Non-programmable Thermostat

Model：STN3201

Features:

1 Heat / 1 Cool

Non programmable

Batteries or 24V power

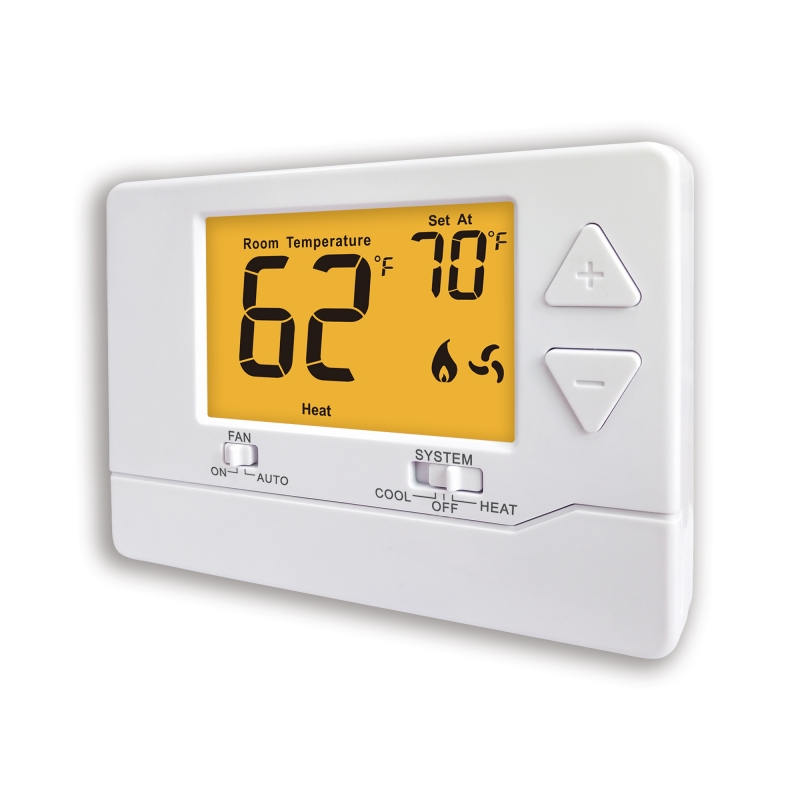

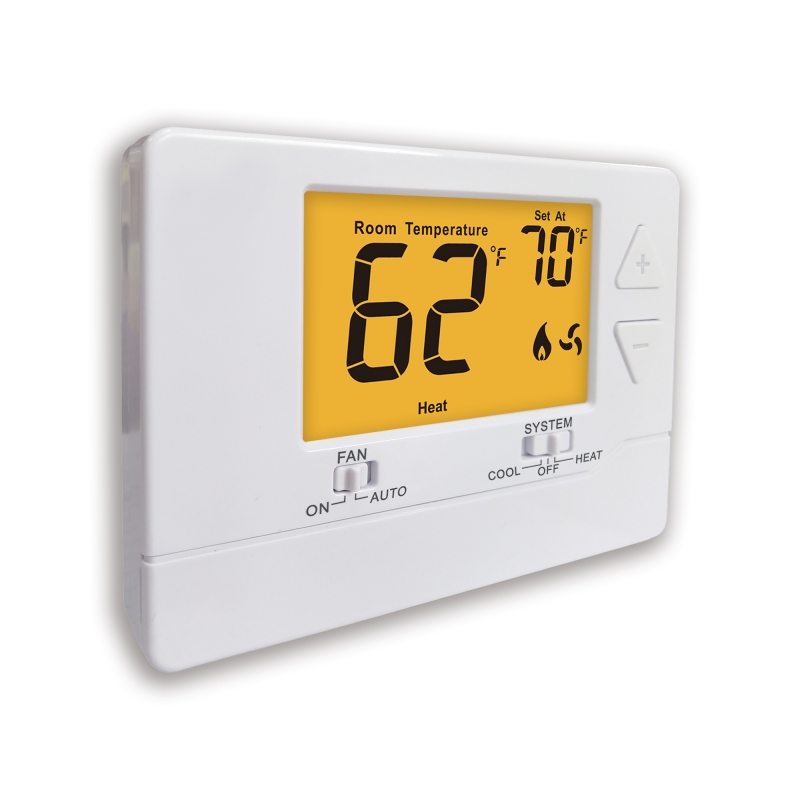

Large, easy to read clear LCD display

Various backlight color optional

Electric or Gas configurable

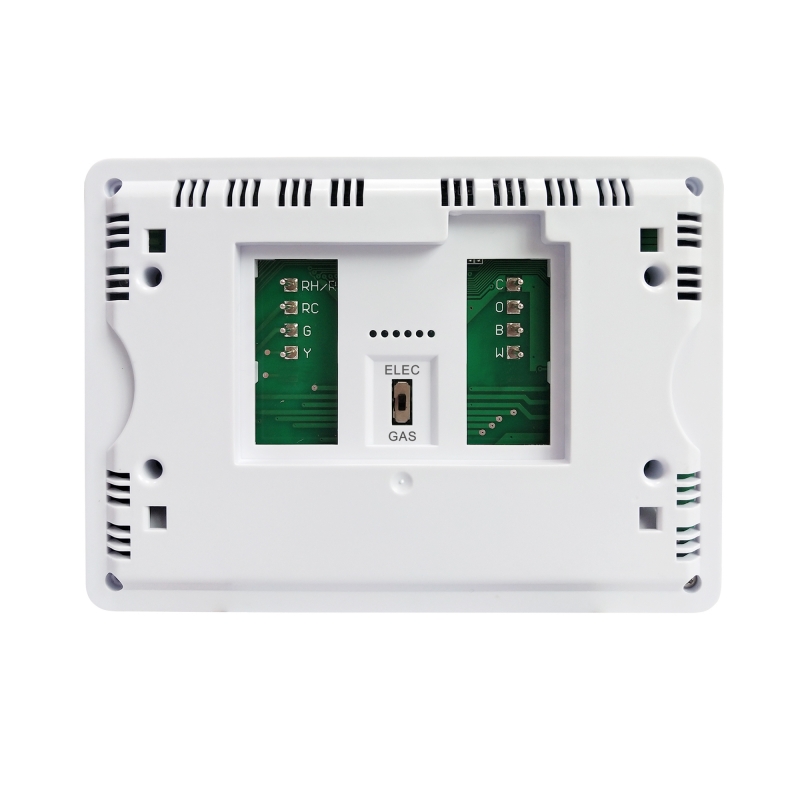

Separate B & O terminals

Separate heating and cooling swing (cycle rate) adjustments

Room temperature calibration adjustable

5 minute compressor delay protection (selectable on or off)

Contemporary design

Request A Quote

Products Description

Model No.: STN3201

Programmability: Non Programmable

Temperature Range (˚F): 32˚F-99˚F (1°C-40°C)

Control Temp.Range (˚F): 44˚F-90˚F (7°C-32°C)

Temp.Meas.Accuracy: ±1°C (at 20°C)

Power Source: DC 2 x AAA 1.5V Alkaline batteries

24VAC (18~30VAC), 50/60 Hz for hardwire (common wire)

Dimensions: 138 x98 x28 mm
