PRODUCTS
Home / Products / HVAC Thermostat / Heat Pump 7 Day Programmable Thermostat

Heat Pump 7 Day Programmable Thermostat

Model:STN2320
Features:

2 Heat / 1 Cool

Heat Pump

7 Day,5/1/1 or Non-Programmable

Batteries or 24V power

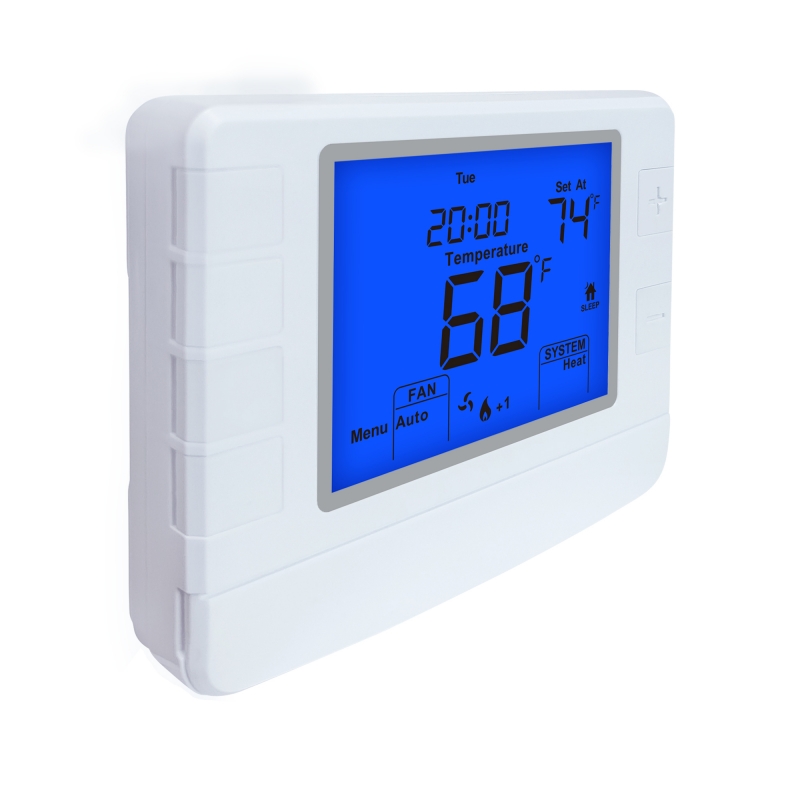

Large, easy to ready clear LCD display

Various backlight color optional

Easy menu driven programming

Intuitive wake, leave, return, sleep programming icons

Electric or Gas configurable

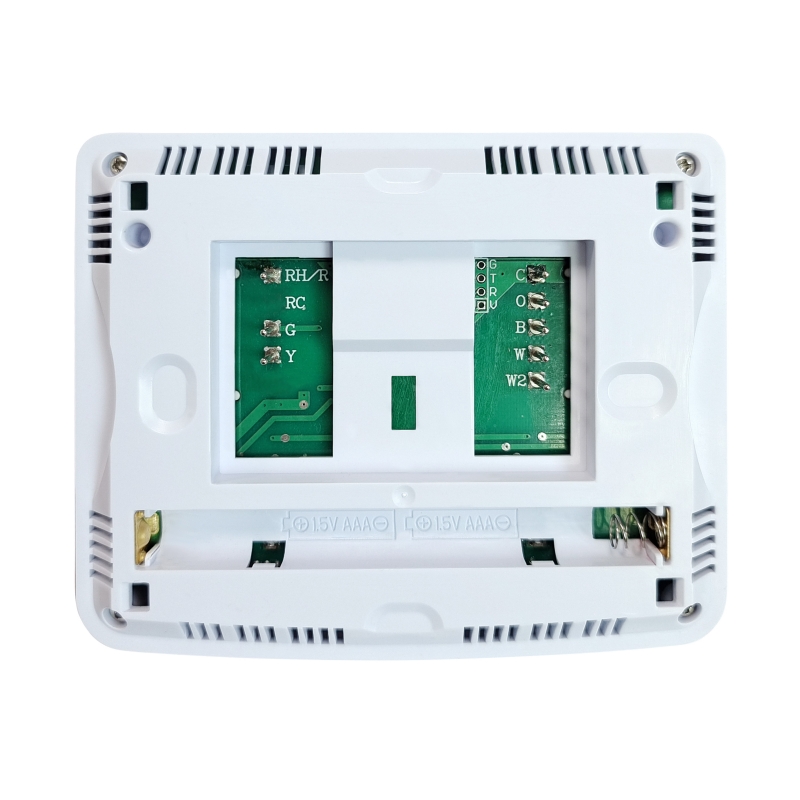

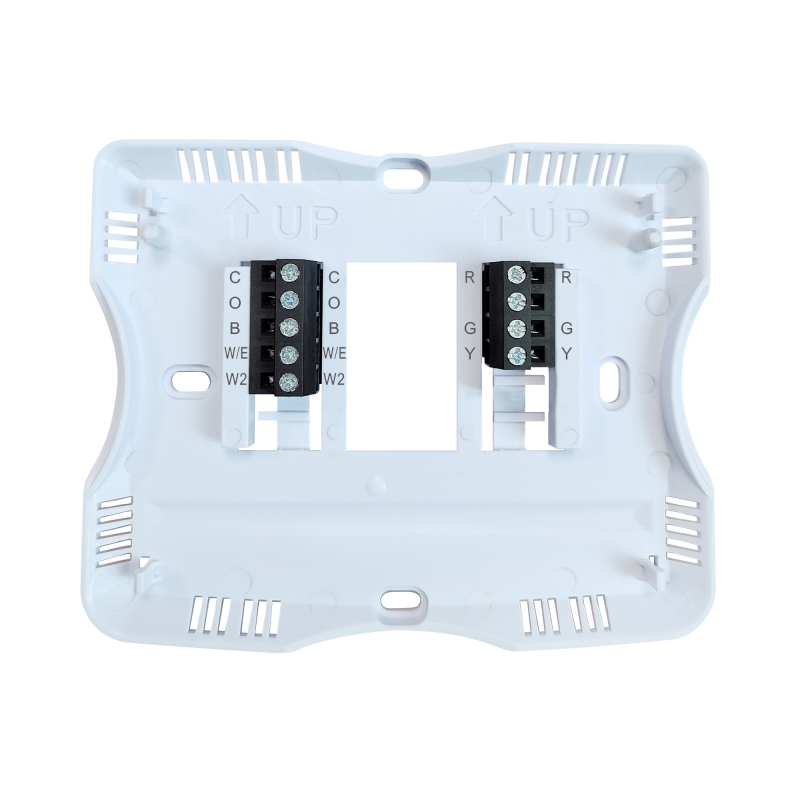

Separate B & O terminals

Separate heating and cooling swing (cycle rate) adjustments including 2nd stage adjustments

Filter change indicator (selectable on or off)

Room temperature calibration adjustable

5 minute compressor delay protection (selectable on or off)

Contemporary design

Factory pre-set programme


Request A Quote
Products Description

Model No.: STN2320

Programmability: 7 Day,5/1/1 or Non-Programmable

Temperature Range (˚F): 32˚F-99˚F (1°C-40°C)

Control Temp.Range (˚F): 44˚F-90˚F (7°C-32°C)

Temp.Meas.Accuracy: ±1°C (at 20°C)

Power Source:  DC 2 x AAA 1.5V Alkaline batteries

24VAC (18~30VAC), 50/60 Hz for hardwire (common wire)
