Wireless Boiler Room Thermostat

Model:2305RF
Features:

Large, easy to ready clear LCD display

Various backlight color optional

HEAT (Heating) / COOL (Cooling) / OFF (Frost Protection)

Room Temperature Calibration adjustment (in -3~+3°C)

Slider switch

Easy to use

Easy installation

Request A Quote
Products Description

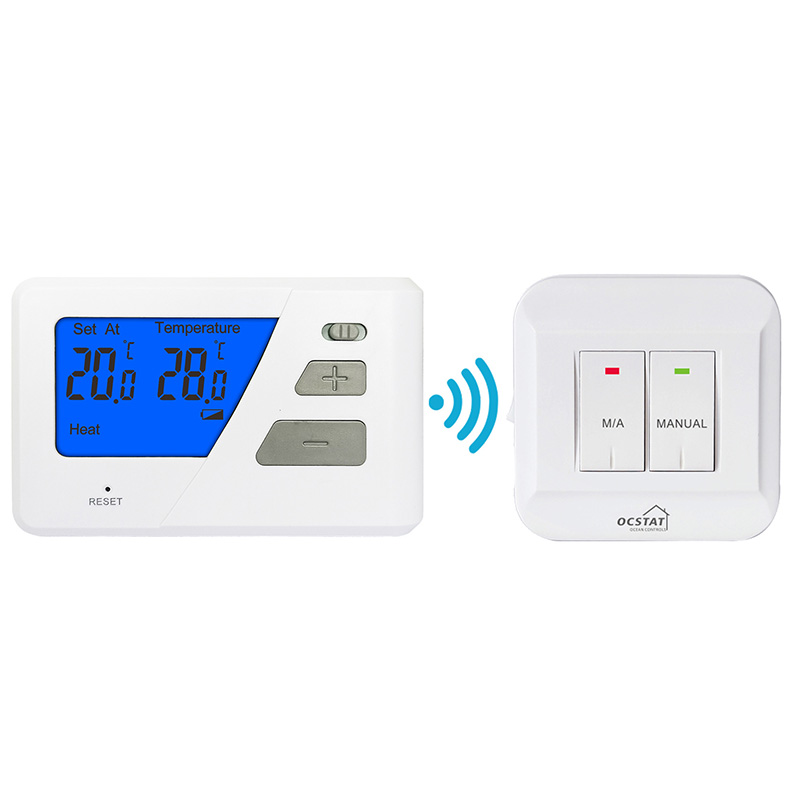

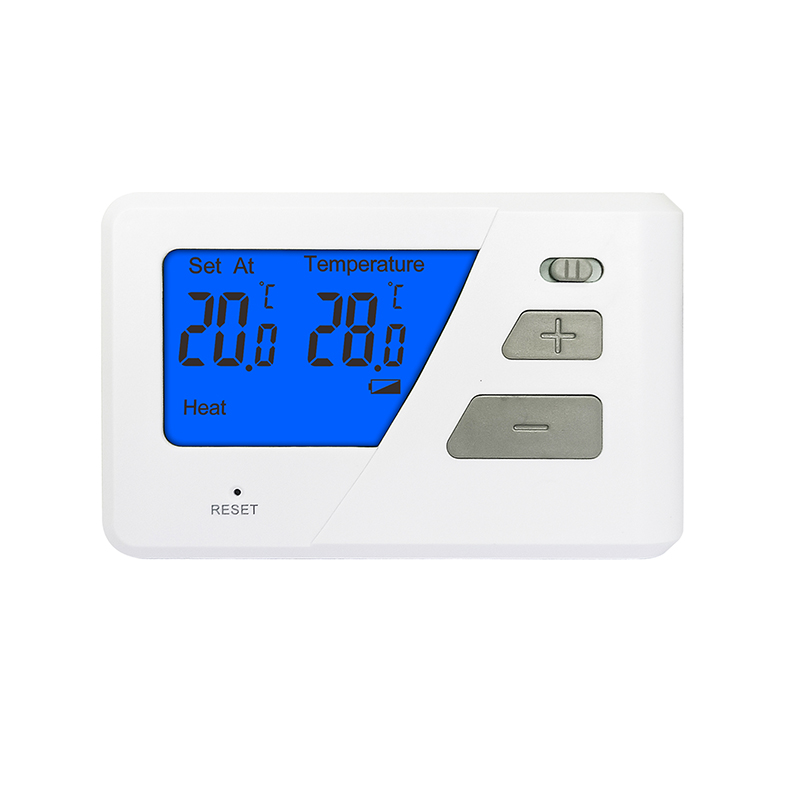

Transmitter (thermostat):

Model No.: S2305RF

Switchable Voltage: 24 V AC / DC,...250 V AC; 50 Hz

Switchable Current: 6 A (2 A inductive load)

Programmability: Non-Programmable

Temperature Range (°C): 3°C-37°C in 0.1°C

Control Temp.Range (°C): 5°C-35°C in 0.5°C

Temp.Meas.Accuracy: ±1°C (at 20°C)

Defrosting Temperature: +7°C

Power Source:  DC 2 x AAA 1.5V Alkaline batteries

Dimensions: 118 x80 x26 mm



Receiver:

Power Supply: 230VAC, 50HZ

Operating Frequency:868.35MHZ

Transmission Distance: approx. 200m in open terrain

Consumption: 6W

Maximum Load: 6(2)A, 230V

Dimensions: 86 x 86 x 26 mm
