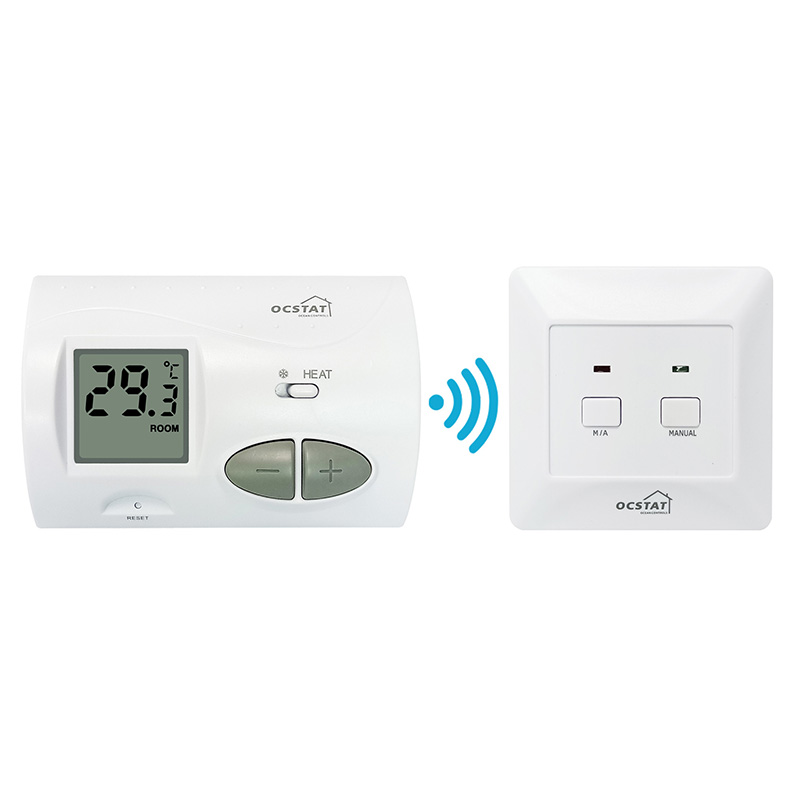

Wireless RF Room Thermostat

Model:C3RF
Features:

Large push button

HEAT (Heating) / OFF (Frost Protection)

Switching sensitivity adjustable

Battery low indicator

Classical design

Simple Operation

Easy installation


Request A Quote
Products Description

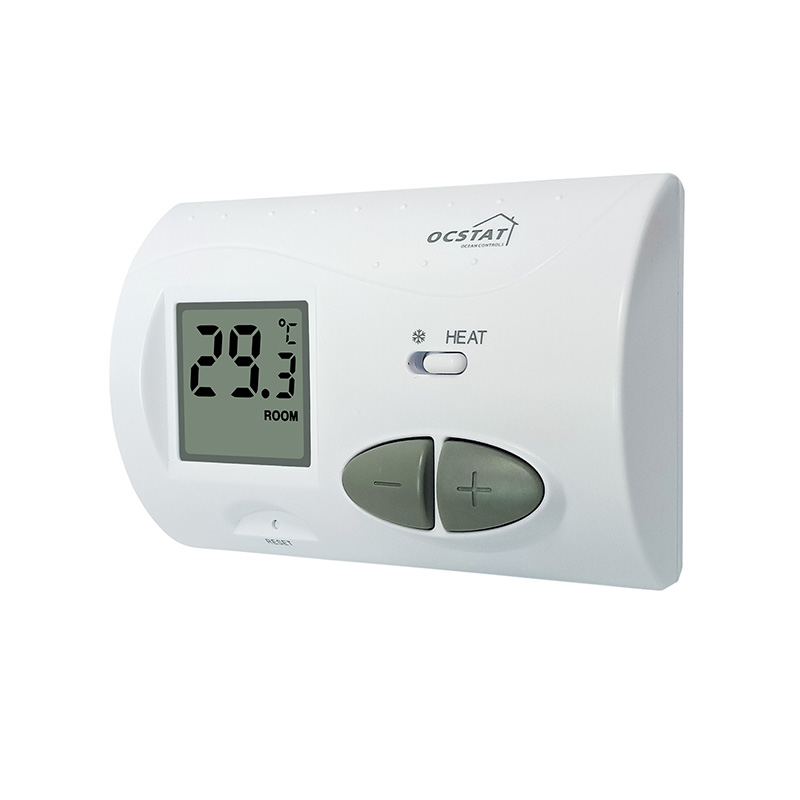

Transmitter (thermostat):

Model No.: C3RF

Switchable Voltage: 24 V AC / DC,...250 V AC; 50 Hz

Switchable Current: 6 A (2 A inductive load)

Programmability: Non-Programmable

Temperature Range (°C): 5°C-35°C in 0.5°C

Control Temp.Range (°C): 10°C-30°C in 0.5°C

Temp.Meas.Accuracy: ±1°C (at 20°C)

Defrosting Temperature: +7°C

Power Source:  DC 2 x AA 1.5V Alkaline batteries

Dimensions: 110 x75 x45 mm(without holder)

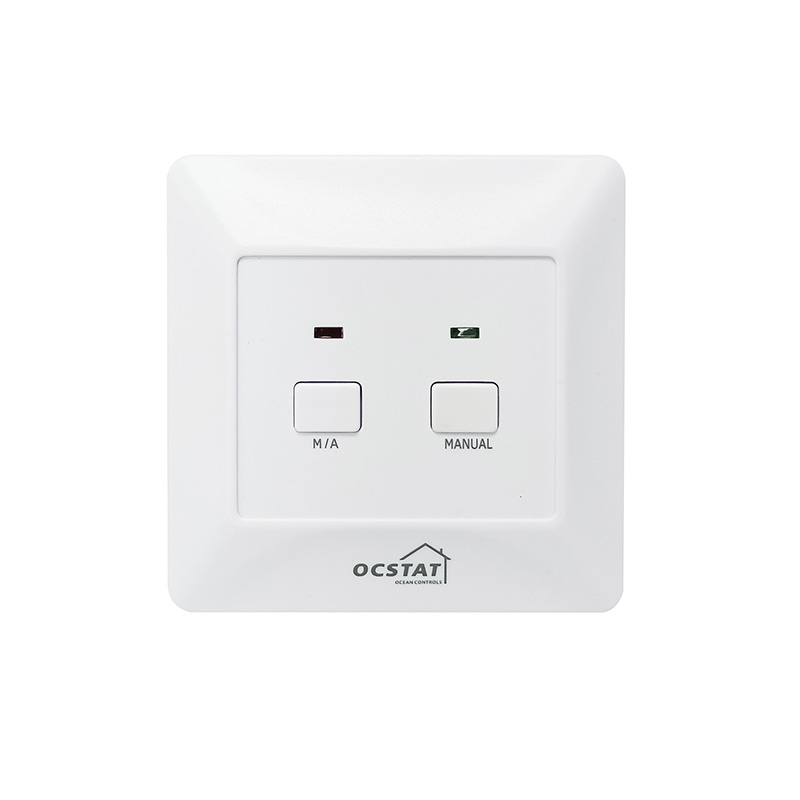

Receiver:

Power Supply: 230VAC, 50HZ

Operating Frequency:868.35MHZ

Transmission Distance: approx. 100m in open terrain

Consumption: 6W

Maximum Load: 6(2)A, 230V
