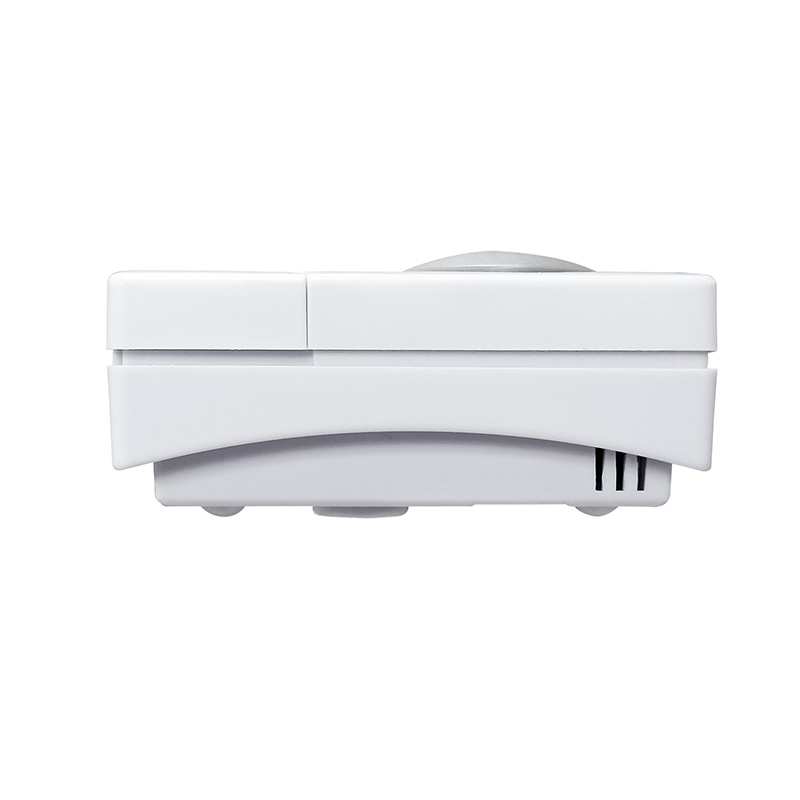

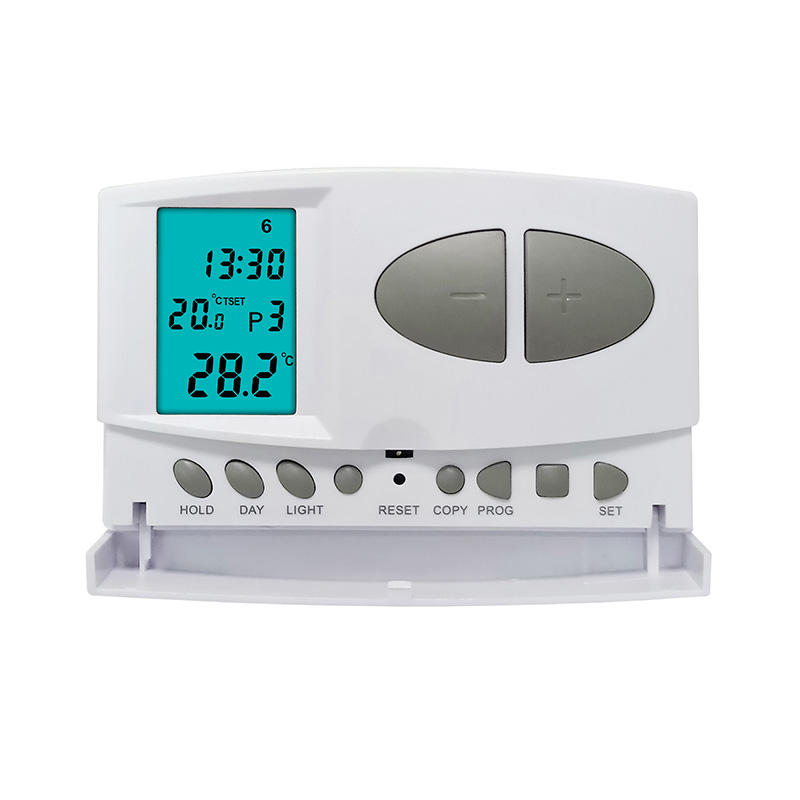

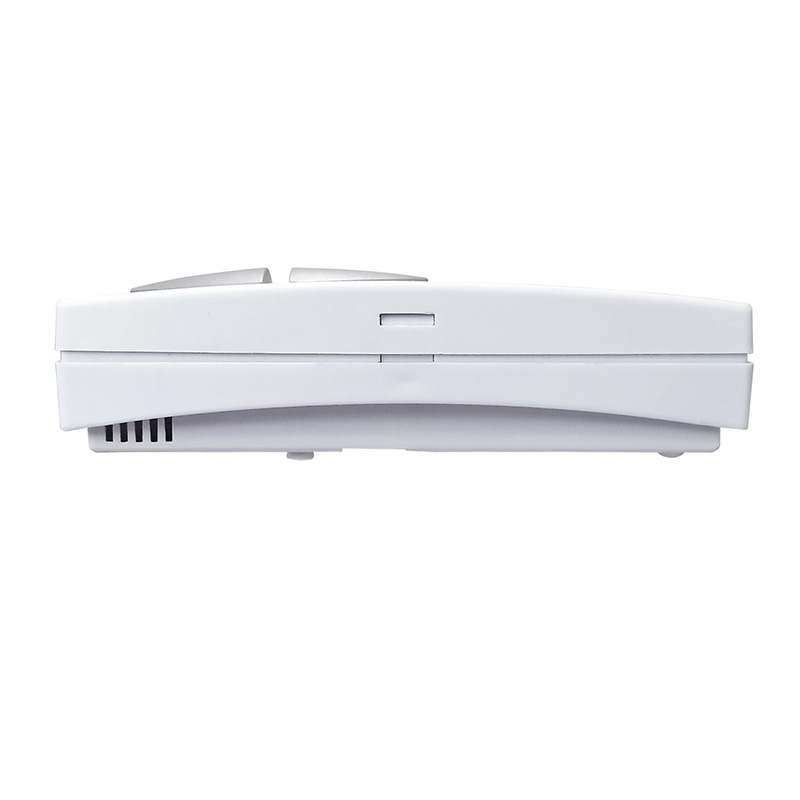

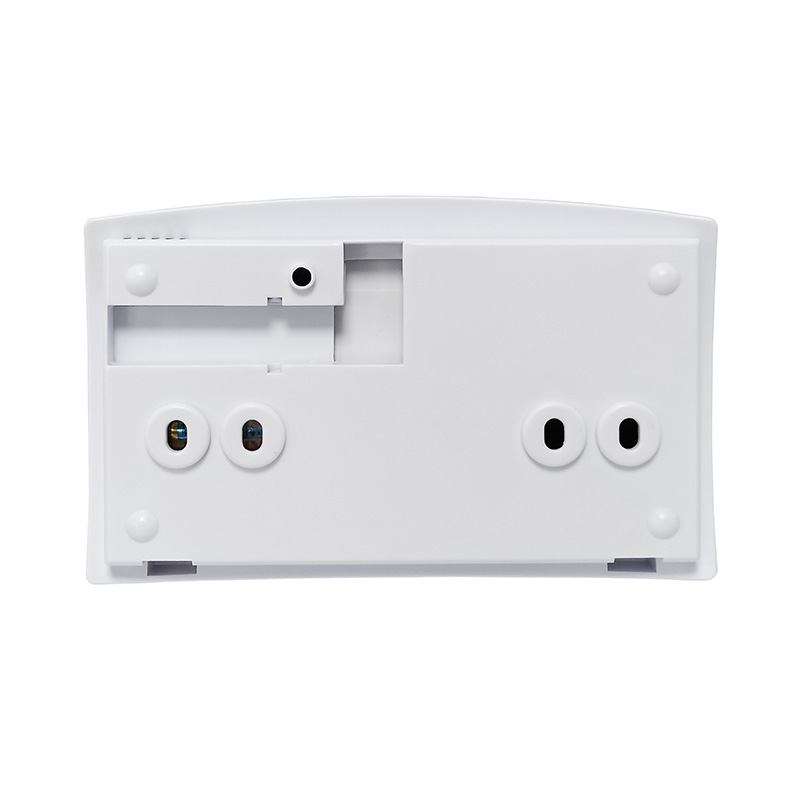

Boiler 7 Day Electronic Thermostat

Model:C7
Features:

Large push button

Clear LCD display

Green backlight color

Room Temperature Calibration adjustment (in -3~+3°C)

Switching sensitivity adjustable

Manual override mode and Holiday mode

Keypad Lockout

Factory pre-set programme

Easy installation

Request A Quote
Products Description

Model No.: C7

Switchable Voltage: 24 V AC / DC,...250 V AC; 50 Hz

Switchable Current: 6 A (2 A inductive load)

Programmability: 7 Day, 5/2 Day and 24 hour Programmable

Temperature Range (°C): 5°C-35°C in 0.5°C

Control Temp.Range (°C): 10°C-30°C in 0.5°C

Temp.Meas.Accuracy: ±1°C (at 20°C)

Power Source:  DC 2 x AA 1.5V Alkaline batteries

Dimensions: 130 x80 x35 mm
