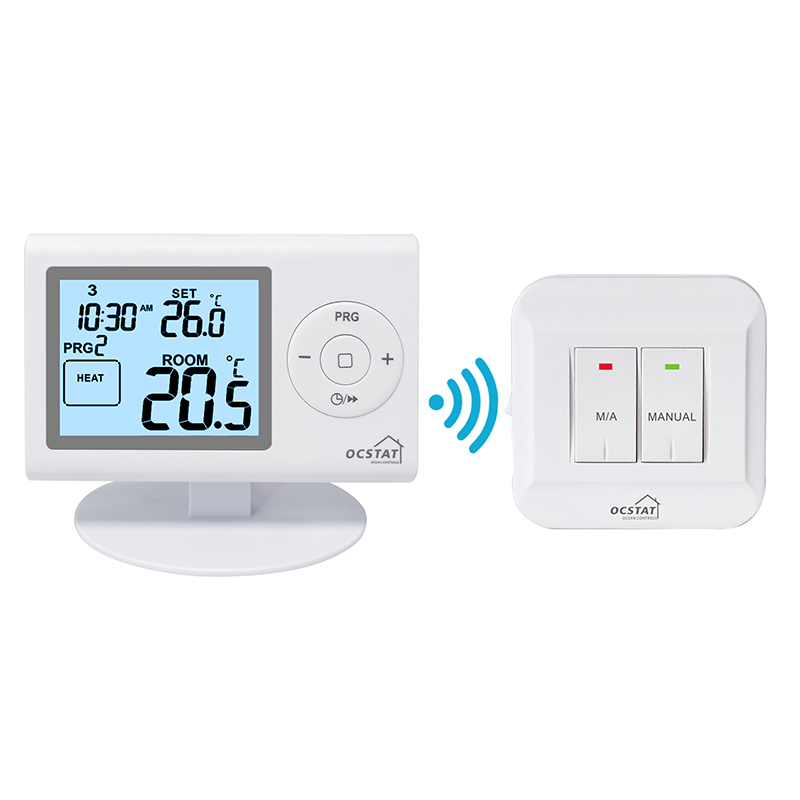

RF Programmable Thermostat

Model:ST2402RF
Features:

Large, easy to ready clear LCD display

Various backlight color optional

HEAT (Heating) / COOL (Cooling)

Room Temperature Calibration adjustment (in -3~+3°C)

Switching sensitivity adjustable

Manual override mode and Holiday mode

Keypad Lockout

Contemporary design

Factory pre-set programme

Easy installation


Request A Quote
Products Description

Transmitter (thermostat):

Model No.: ST2402RF
Switchable Voltage: 24 V AC / DC,...250 V AC; 50 Hz
Switchable Current: 6 A (2 A inductive load)
Programmability: 7 Day, 5/2 Day and 24 hour
Programmable
Temperature Range (°C): 0°C-40°C in 0.1°C
Control Temp.Range (°C): 5°C-35°C in 0.5°C
Temp.Meas.Accuracy: ±1°C (at 20°C)
Power Source:  DC 2 x AAA 1.5V Alkaline batteries
Dimensions: 120 x77 x28 mm

Receiver:

Power Supply: 230VAC, 50HZ

Operating Frequency:868.35MHZ

Transmission Distance: approx. 200m in open terrain

Consumption: 6W

Maximum Load: 6(2)A, 230V

Dimensions: 86 x 86 x 26 mm
