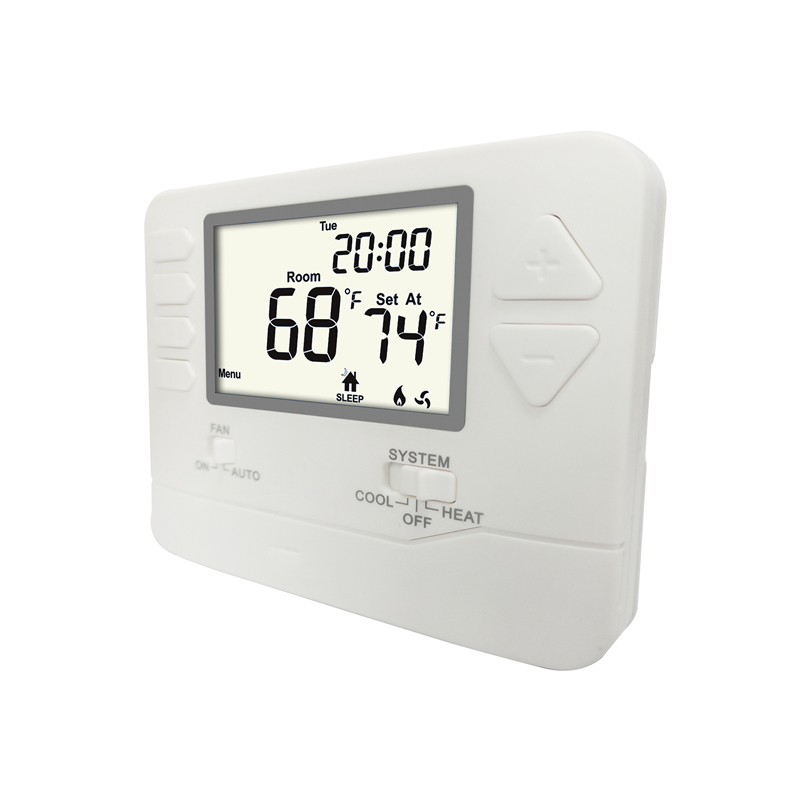

24V Wire Programmable Thermostat

Model:STN705
Features:

1 Heat / 1 Cool

5/1/1 programmable

Batteries or 24V power

Large, easy to ready clear LCD display

Various backlight color optional

Easy menu driven programming

Intuitive wake, leave, return, sleep programming icons

Electric or Gas configurable

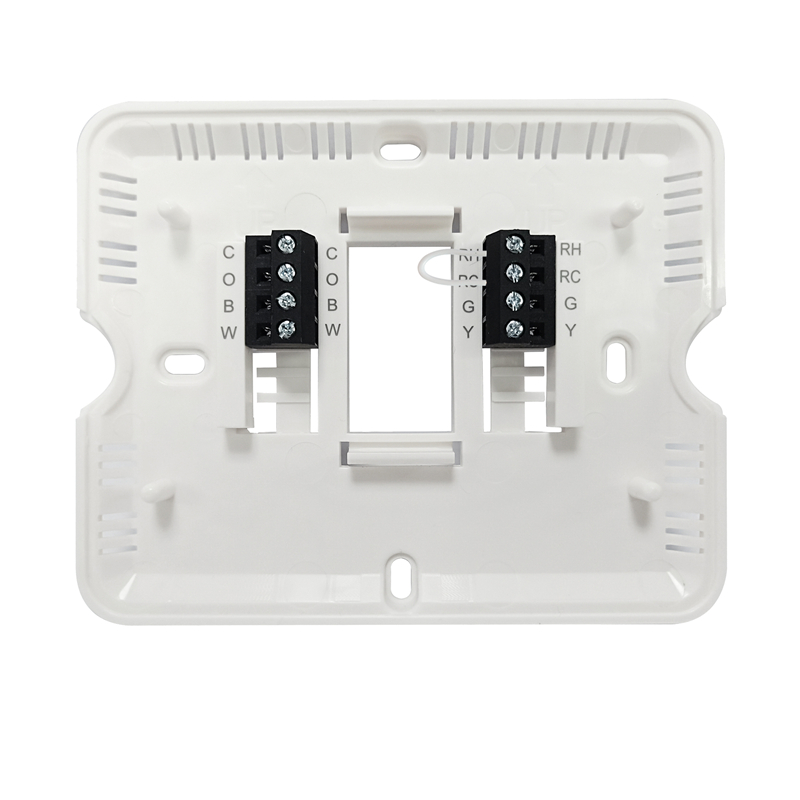

Separate B & O terminals

Separate heating and cooling swing (cycle rate) adjustments

Room temperature calibration adjustable

5 minute compressor delay protection (selectable on or off)

Contemporary design

Factory pre-set programme

Request A Quote
Products Description

Model No.: STN705

Programmability: 5/1/1 Programmable

Temperature Range (˚F): 32˚F-99˚F (1°C-40°C)

Control Temp.Range (˚F): 44˚F-90˚F (7°C-32°C)

Temp.Meas.Accuracy: ±1°C (at 20°C)

Power Source:  DC 2 x AAA 1.5V Alkaline batteries

24VAC (18~30VAC), 50/60 Hz for hardwire (common wire)

Dimensions: 120 x98 x28 mm
