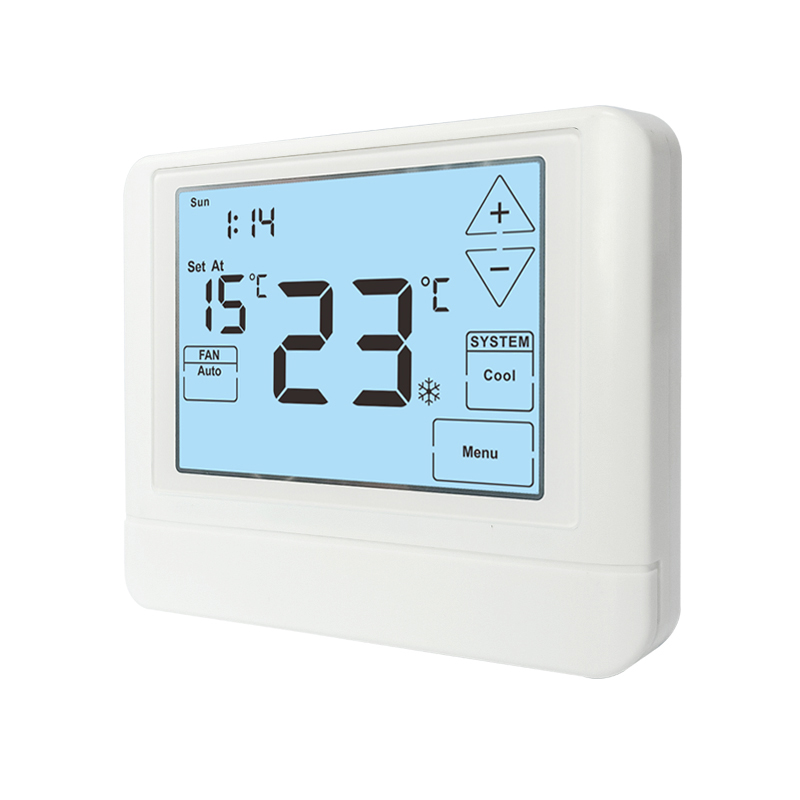

Touchscreen Single Stage Thermostat

Model:805
Features:

1 Heat / 1 Cool

7 Day, 5/1/1 programmable or Non programmable

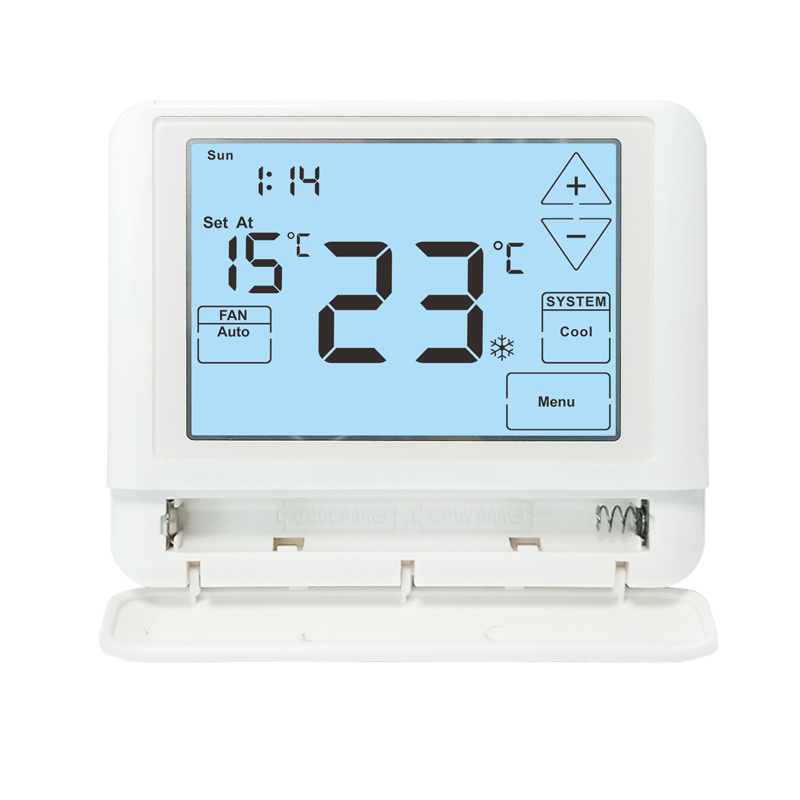

Batteries or 24V power

Large, easy to read clear LCD touchscreen

Various backlight color optional

Auto Changeover

Easy menu driven programming

Intuitive wake, leave, return, sleep programming icons

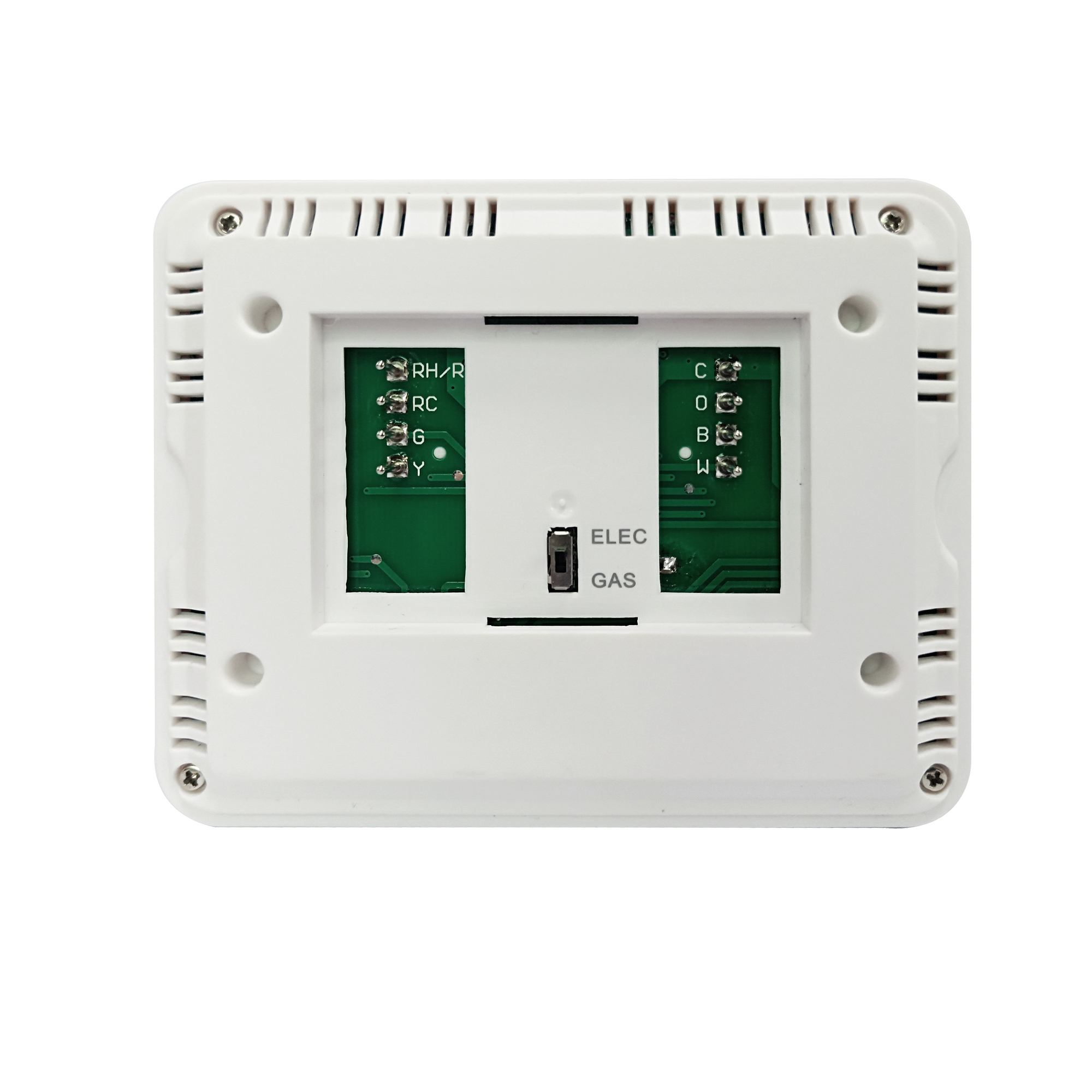

Electric or Gas configurable

Separate heating and cooling swing (cycle rate) adjustments

Keypad lockout

Heating and cooling setpoint limit

Filter change indicator (selectable on or off)

Room temperature calibration adjustable

5 minute compressor delay protection (selectable on or off)

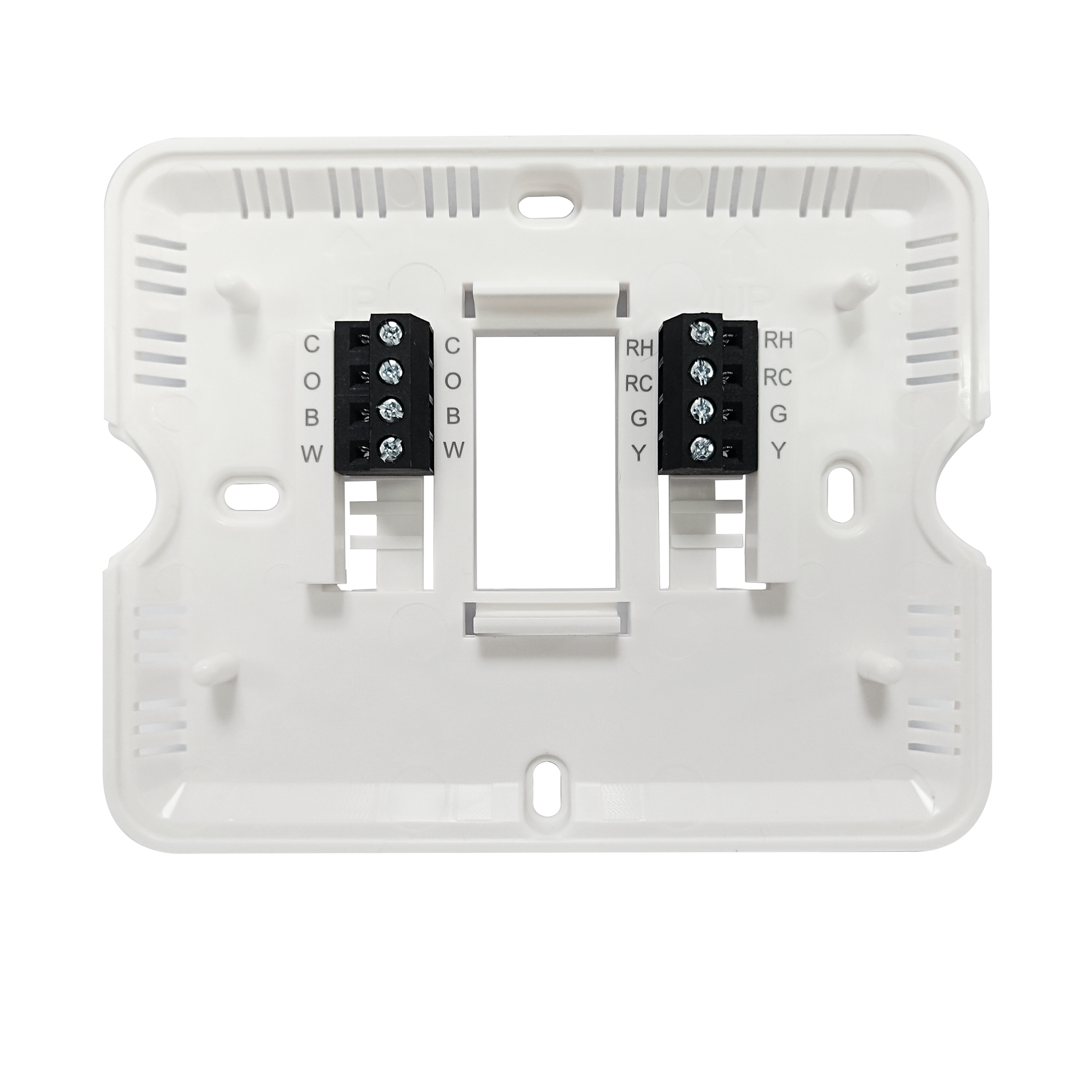

Easy wire color coded terminal blocks

Universal sub-base

Mounts on wall or junction box

Contemporary design

Factory pre-set programme

Request A Quote
Products Description

Model No.: STN805

Programmability:7 Day, 5/1/1 Programmable or Non-programmable

Temperature Range (˚F): 32˚F-99˚F (1°C-40°C)

Control Temp.Range (˚F): 44˚F-90˚F (7°C-32°C)

Temp.Meas.Accuracy: ±1°C (at 20°C)

Power Source:  DC 2 x AAA 1.5V Alkaline batteries

24VAC (18~30VAC), 50/60 Hz for hardwire (common wire)

Dimensions: 120 x98 x28 mm
