Universal 2 Heat / 1 Cool Heat pump or 1 Heat / 1 Cool conventional
Non-programmable
Large, easy to read clear LCD display
Various backlight color optional
Wired PTAC thermostat and base module
Affordable comfort control
Separate B & O terminals
Separate heating and cooling swing (cycle rate) adjustments
Room temperature calibration adjustments
Heating and cooling set point limit

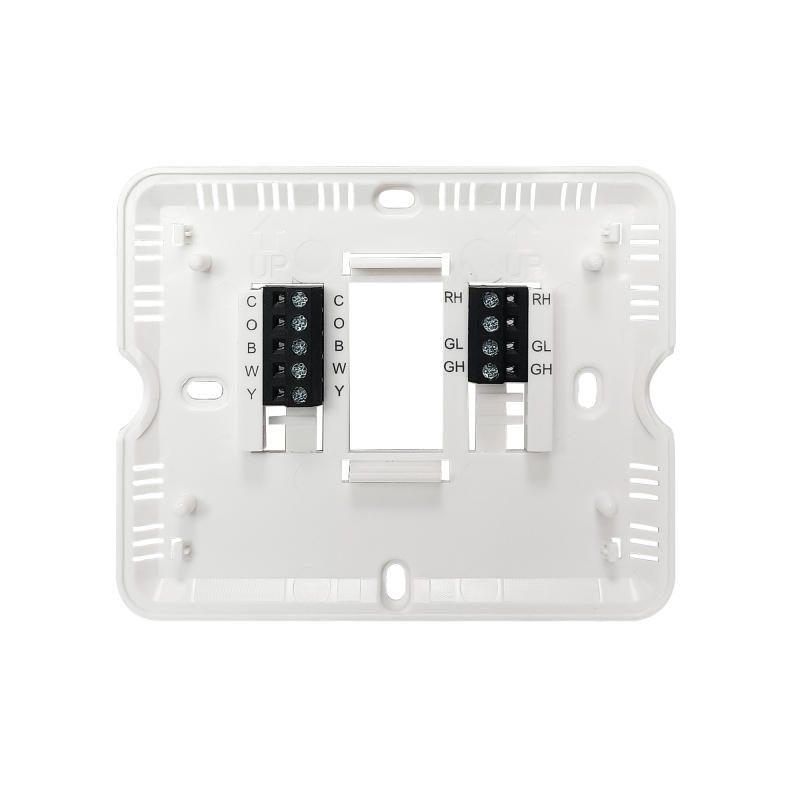

Universal sub-base
Mounts on wall or junction box
Contemporary design
Model No.: STN731
Programmability:Non-programmable
Temperature Range (˚F): 32˚F-99˚F (1°C-40°C)
Control Temp.Range (˚F): 44˚F-90˚F (7°C-32°C)
Temp.Meas.Accuracy: ±1°C (at 20°C)
Power Source: DC 2 x AAA 1.5V Alkaline batteries
24VAC (18~30VAC), 50/60 Hz for hardwire (common wire)
Dimensions: 120 x98 x28 mm
