Heating and Cooling Thermostat for Boiler

Model:S2303
Features:

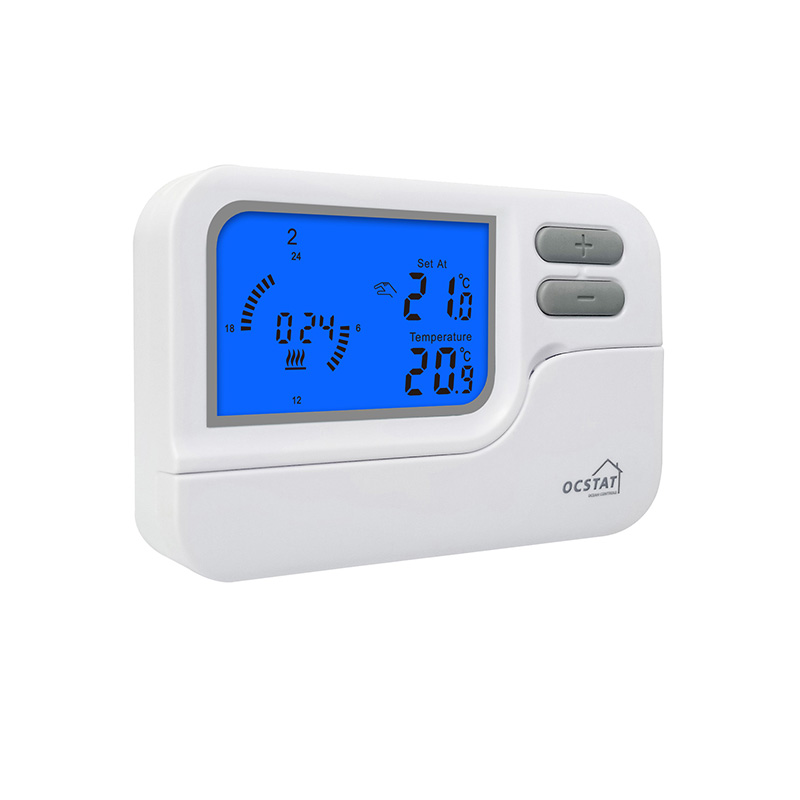

Large, easy to ready clear LCD display

Various backlight color optional

Room Temperature Calibration adjustment (in -3~+3°C)

Switching sensitivity adjustable

Manual override mode

Keypad Lockout

Factory pre-set programme

Easy installation

Request A Quote
Products Description

Model No.: S2303

Switchable Voltage: 24 V AC / DC,...250 V AC; 50 Hz

Switchable Current: 6 A (2 A inductive load)

Programmability: 7 Day Programmable, 48 Time & 2 Temp per day

Temperature Range (°C): 0°C-40°C in 0.5°C

Control Temp.Range (°C): 5°C-35°C in 0.5°C

Temp.Meas.Accuracy: ±1°C (at 20°C)

Power Source:  DC 2 x AAA 1.5V Alkaline batteries

Dimensions: 119 x80 x26 mm
