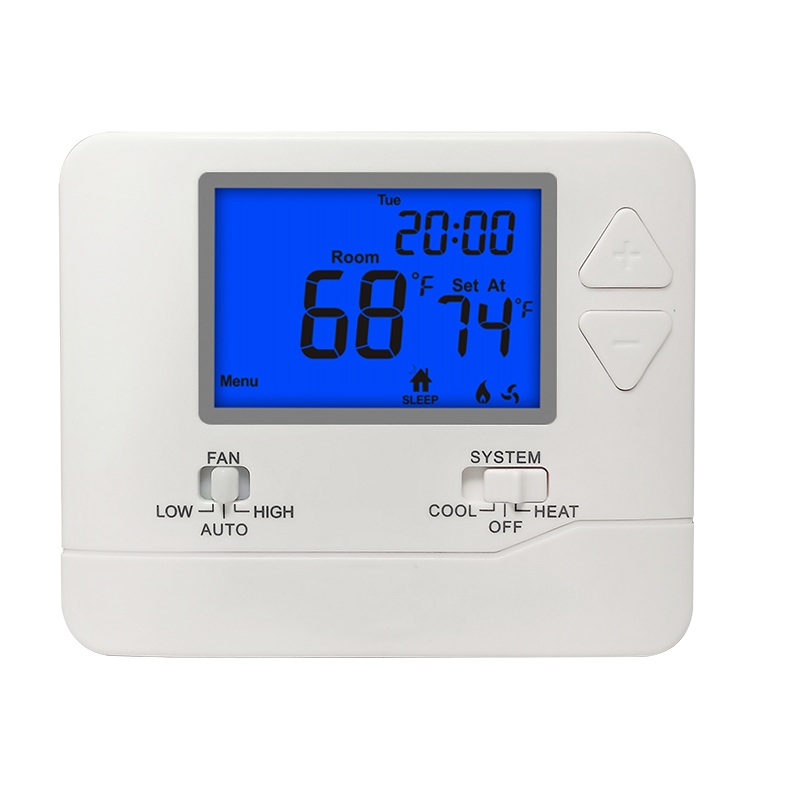

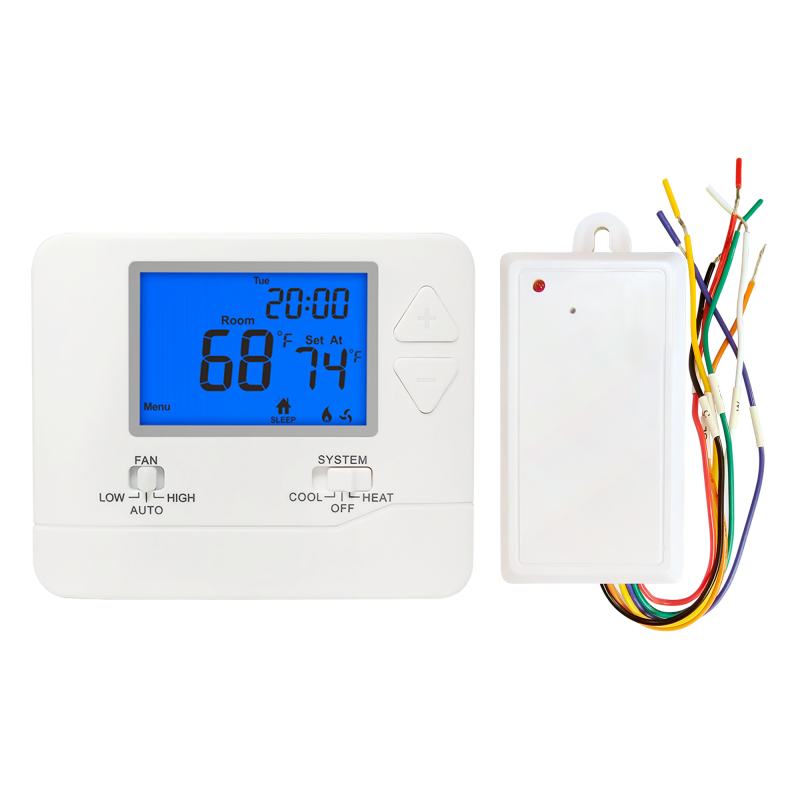

Wireless Programmable PTAC Thermostat

Model：STN715RF

Features:

Affordable Comfort Control

1 Heat, 1 Cool / 2 Heat,2 Cool

Heating and Cooling Set point limits

Separate heating and cooling swing (cycle rate) adjustments

7 Day, 5/1/1 or Non-Programmable

White/Blue/Green backlight

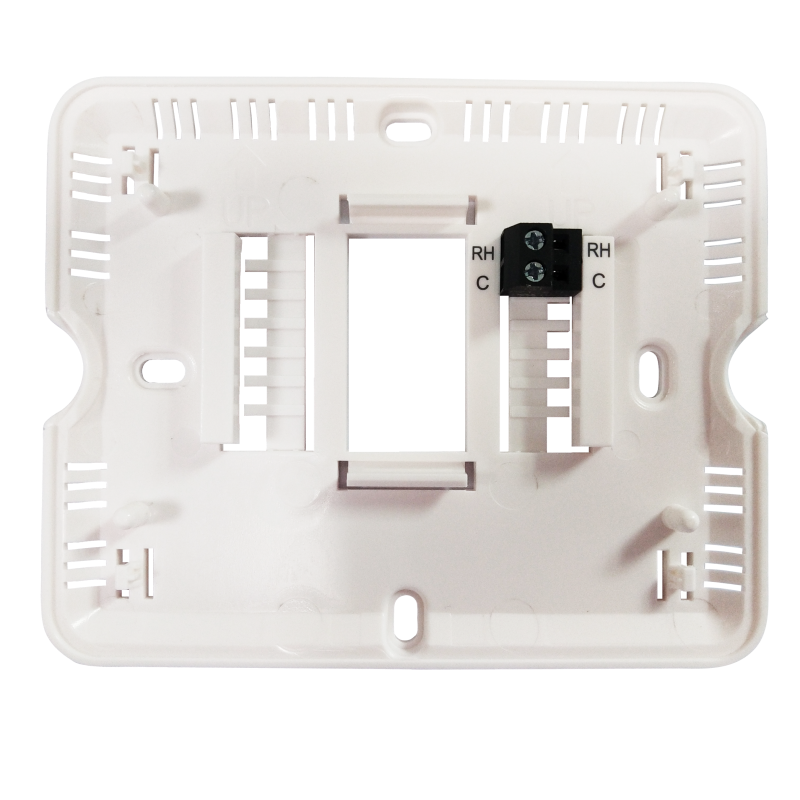

Universal sub-base

Room temperature calibration adjustments

Mounts on wall or junction box

Battery or 24V power

Request A Quote

Products Description

Model No.: STN715RF

Programmability: Programmable

Temperature Range (˚F): 32˚F-99˚F (1°C-40°C)

Control Temp.Range (˚F): 44˚F-90˚F (7°C-32°C)

Temp.Meas.Accuracy: ±1°C (at 20°C)

Power Source: Thermostat: DC 2 x AAA 1.5V Alkaline batteries

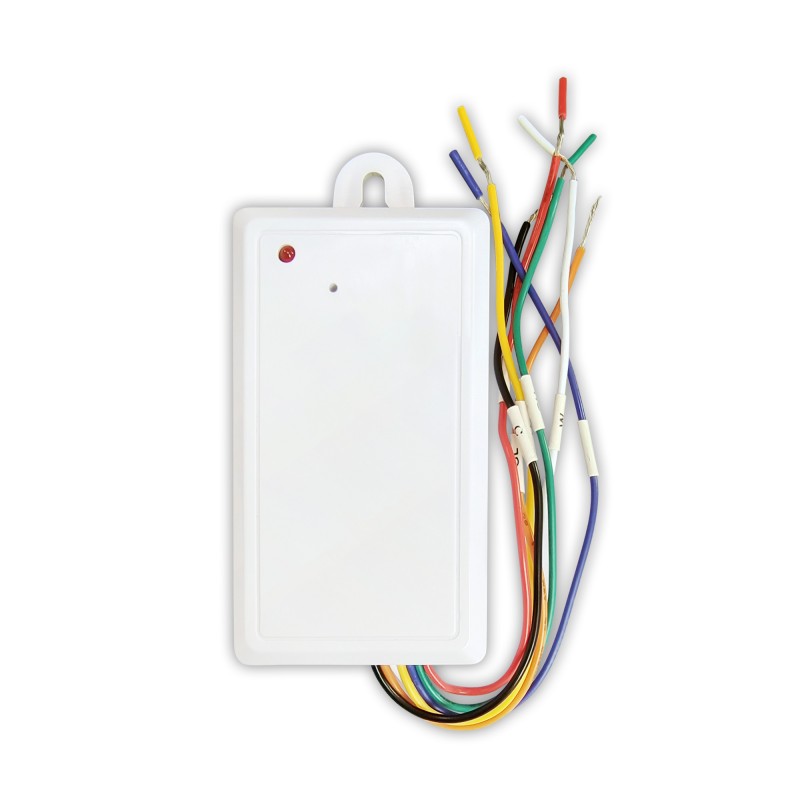

Receiver: 24VAC (18~30VAC), 50/60 Hz for hardwire

(common wire)

Dimensions: 120 x98 x28 mm
